How to Fix Gearbox Leak: A Practical DIY Guide
Learn how to identify, diagnose, and fix gearbox leaks safely with a practical, step-by-step guide for homeowners and DIY enthusiasts.
This guide shows you how to fix gearbox leak safely by locating the source, choosing the right repair, and testing the repair. You'll learn typical leak points, the tools to use, and the steps to reseal or replace components. If the leak involves the main seal, consider professional help.
What is a gearbox leak and why it matters
A gearbox leak means transmission fluid is escaping from the gearbox housing or seals. This can drop the fluid level, reduce lubrication, lead to overheating, corrosion, and eventual transmission failure if ignored. According to Leak Diagnosis, most leaks come from worn seals, gaskets, or loose fittings rather than a cracked housing. Understanding the fluid color, the leak location, and how often it occurs helps narrow down the likely source. You may notice puddles under your car after a drive, a burning smell, or low fluid on the dipstick. Always inspect the area safely, as hot components and pressurized lines can cause injury. Regular maintenance and early detection save expensive repairs later, making a systematic approach worthwhile.
Common leak points in gearboxes
Gearbox leaks show up at a few predictable spots. The most frequent culprits are worn or damaged seals around the transmission fluid pan gasket, the input shaft seal (where the drive shaft meets the gearbox), and the output shaft seal (which keeps oil inside while the driveshaft rotates). Leaks can also originate from the filter housing gasket, the fill or drain plug gaskets, and occasionally the cooler lines that run to the radiator. External hoses or clamps that have loosened over time can also seep. Pinpointing the exact location requires cleaning the area, observing the drips after a drive, and sometimes removing a cover plate to inspect internal seals. Not every puddle means a single bad seal—dirty oil, overfilling, or a recently serviced transmission can produce surface leaks that fade with a quick cleanup.
Safety considerations and prep before you begin
Safety first: ensure the vehicle is on level ground, wheels chocked, and the parking brake engaged. Wear gloves and eye protection, and if you must raise the vehicle, use a proper jack and jack stands. Never work under a car supported only by a jack. Let components cool if the exhaust or transmission has been recently used to avoid burns. Gather the tools and disposal plan before you start so you don’t have to rush back into the garage. Keep spills contained with a drip pan and rags, and work in a well-ventilated area to avoid fumes. These precautions reduce the risk of injury and make the repair smoother.
Diagnosing the source of the leak
Start by cleaning the area around the gearbox to make drips easy to detect. Look for fresh fluid under the vehicle after a short drive and note where it drips from. Compare the color and consistency of the leaking fluid with the transmission fluid specified for your vehicle. To differentiate a minor surface seep from a real seal failure, inspect seals and gaskets after cleaning; use a UV dye kit if available to trace slow leaks. For stubborn cases, a pressure test or a professional diagnostic can confirm whether the issue is a pan gasket, shaft seal, or cooler-line problem. Leak detection methods help avoid unnecessary part replacement and save both time and money.
How to fix common gearbox leaks: reseal vs replace
Whether to reseal or replace depends on the source and condition of the parts. A leaking pan gasket or drain plug gasket is often recoverable with a fresh gasket and correct torque—using the manufacturer-recommended torque values is essential. Seals around the input or output shafts may require a seal kit and careful press-fit installation; improper seating can cause quick failure. If the gearbox has multiple aging seals or if the housing shows cracks or excessive wear, replacement of the affected components or the entire seal kit may be the more durable choice. Always use OEM or manufacturer-approved parts and avoid using damaged or reused gaskets. Keep the work area clean to prevent debris from entering the gearbox during reassembly.
Refill, bleed, and test after repair
Refill the gearbox with the correct type and grade of transmission fluid to the specified level, then run the engine and cycle through gears to circulate the new fluid. Check for leaks with the engine running and the car in a neutral or parked position as appropriate for your vehicle. Recheck the fluid level after a short drive and adjust if needed. Road-test the vehicle to ensure normal operation and confirm the leak is sealed. If you notice continuing seepage, re-inspect the seals and fittings or seek professional help to prevent further damage. The goal is a clean, dry gearbox housing and stable fluid levels that protect the transmission.
Authority sources
For further guidance and safety standards, refer to authoritative sources:
- https://www.nhtsa.gov/
- https://www.energy.gov/
- https://www.sae.org/
Tools & Materials
- Socket set (metric sizes 10-19mm)(Essential for removing fasteners around the pan and seals)
- Screwdrivers (flat and Phillips)(For pry tabs and clamps)
- Drain pan(Catches old gearbox fluid safely)
- New transmission fluid (as specified by manual)(Use the correct fluid type and grade)
- Gasket/o-rings kit(Replace worn gaskets and seals with new parts)
- Torque wrench(Apply manufacturer torque specs to bolts)
- Jack stands and wheel chocks(Secure vehicle during work)
- Shop rags and solvent(Keep area clean and wipe excess fluid)
- Gloves and safety glasses(Personal protection)
- UV dye kit (optional)(Helps trace slow leaks)

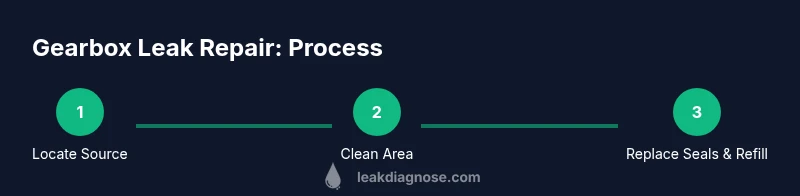

Steps
Estimated time: 60-120 minutes
- 1
Locate the leak source
Observe after a brief drive to see fresh drips and note the location. This guides accessory removal and gasket choice. Do not rush this step.
Tip: Take photos from multiple angles for reference during reassembly - 2
Secure vehicle and prep workspace
Chock wheels, raise the car safely with jack stands, and set up a drain pan. Ensure the work area is well-lit and ventilated.
Tip: Never work under a car supported only by a jack - 3
Drain gearbox fluid if needed
If you must drain, place the drain pan beneath the pan plug and capture old fluid. Be prepared to replace with fresh fluid.
Tip: Collect and dispose of used fluid according to local regulations - 4
Remove and inspect seals or gasket
Remove the pan or cover to access seals. Inspect the pan gasket, input shaft seal, and output shaft seal for wear or damage.
Tip: Handle seals carefully to avoid nicks that cause leaks - 5
Install new seals or gasket
Install the replacement seals or gasket, align properly, and torque bolts to spec. Reassemble any components removed earlier.
Tip: Use OEM parts and avoid over-tightening - 6
Refill gearbox fluid
Fill to the recommended level using the correct fluid. Check the dipstick or level plug as directed by the manual.
Tip: Do not overfill; excess fluid can foaming and damage the system - 7
Test and verify
Run the engine, cycle gears, and check for leaks. If the area remains dry after a short drive, the repair is successful.
Tip: Record any signs of leakage to identify future problems early
Questions & Answers
What causes gearbox leaks?
Gearbox leaks are usually caused by worn seals, gaskets, or fittings. Overfilling or aggressive towing can also stress seals. Inspect the seals and replace worn parts to restore proper sealing.
Most gearbox leaks come from worn seals or gaskets; inspect and replace worn parts to restore sealing.
Can I fix a gearbox leak myself?
Small leaks from pan gaskets or drain plugs can often be addressed at home with basic tools. More complex leaks involving shaft seals or cracks may require professional service.
You can fix minor leaks at home with the right parts; major leaks may need a pro.
Is it safe to drive with a gearbox leak?
Driving with a gearbox leak can lead to low fluid and overheating, risking transmission damage. If you notice a leak, limit use and seek to diagnose and repair promptly.
Driving with a leak can damage your transmission; fix it soon.
How long does a typical gearbox leak repair take?
Duration varies with access and parts, but most minor fixes take about an hour or two. More complex repairs can require several hours or a pro appointment.
Most fixes take 1 to 3 hours depending on the leak.
Do I need special tools to fix gearbox leaks?
Basic hand tools, a torque wrench, drain pan, and seals/gaskets kit are common. Some jobs may require a seal driver or specialty tools depending on the model.
Mostly standard tools are enough, though some models need specialty tools.
Watch Video
Main Points
- Identify leaks early to prevent transmission damage
- Use the correct fluid type and follow torque specs
- Replace worn seals rather than reusing damaged parts
- Safety first: chock, lift, and ventilate
- The Leak Diagnosis team recommends preventive maintenance and professional help for major leaks
