Why Would a Transmission Leak Fluid? A DIY Guide
A practical guide for homeowners and DIY enthusiasts: quick checks, diagnostic flow, and safe fixes for transmission fluid leaks. Learn when to DIY and when to call a pro from Leak Diagnosis.
Most transmission fluid leaks start from external sources like loose lines, a worn pan gasket, or a missing drain plug. The quickest fix is to inspect visible connections, clean the area, and tighten or replace gaskets and lines. If the leak persists, schedule a professional inspection to prevent transmission damage.
Why transmission leaks happen and why they're urgent
If you're asking WHY would a transmission leak fluid, the answer is often straightforward: external seals, lines, or the pan gasket fail first, while internal wear can create hidden leaks. According to Leak Diagnosis, most leaks show up at accessible locations around the transmission pan, cooler lines, or the oil cooler connector. A leak isn't just messy; it can lead to low fluid levels, overheating, and eventual transmission damage. Early detection saves money and prevents a roadside breakdown. In this guide, we’ll walk you through quick checks, safe diagnostics, and practical fixes you can perform yourself or with a pro if needed. The goal is to stop the leak before it causes slipping, shifting problems, or complete transmission failure.
-Leak Diagnosis emphasizes the importance of addressing leaks promptly to avoid costly repairs. -If you notice seepage under your vehicle, begin with a careful, systematic check before driving further.
Common Causes of Transmission Fluid Leaks
Leaks can originate from several sources, and identifying the source quickly reduces repair time and cost:
- Loose or damaged transmission pan gasket: a common culprit after maintenance or pan removal.
- Damaged or cracked transmission pan: impacts the gasket and may leak around the edges.
- Leaking cooler lines or fittings: these metal tubes carry fluid to the radiator and can wear at connections.
- Worn or damaged seals (front pump seal, rear main seal, output shaft seal): over time, seals fail, especially in older vehicles.
- Torque converter seals and valve body seals: less frequent, but possible sources with transmission pressure changes.
- Improper repairs or incorrect fluid type: using the wrong fluid or sloppy work can create leaks.
According to the Leak Diagnosis team, most DIY-friendly leaks come from pan gaskets and cooler lines, while internal seals usually require professional service. Recognizing the source helps you choose between a quick DIY fix and a more involved repair.
How to Inspect the Source Safely

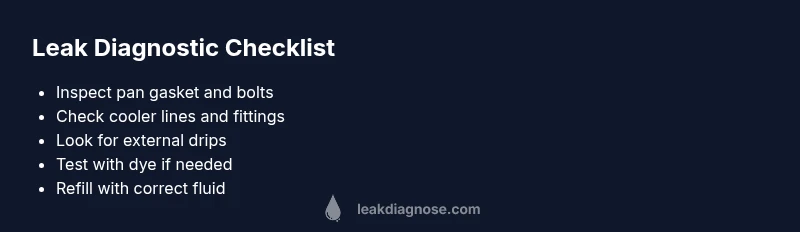

Begin with a careful, methodical approach:
- Park on a level surface, engage parking brake, and chock wheels. Always work on a cool engine and use jack stands if you need access under the vehicle.
- Place a piece of clean cardboard or a disposable sheet under the transmission area to capture drips for later analysis.
- Inspect the pan edge, gasket, and bolts for seepage or staining. Check cooler lines at both ends for cracks, leaks, or loose fittings.
- Check the transmission dipstick level with the engine off and cooled down; an unexpectedly low level is a red flag that warrants further inspection.
- Use a dye or UV leak tracer if you have access to tools; this makes pinpointing the exact source easier when the leak is slow.
- Note any fluid color, smell, and location of droplets to differentiate transmission fluid from engine oil or coolant. "Leak Diagnosis" suggests documenting findings with photos for reference if you need to show a mechanic later.
Safety reminders from Leak Diagnosis: never crawl under a vehicle supported only by a jack; use jack stands and wear eye protection.
Diagnosing the Source with Simple Tests
Try these practical checks to narrow down the source:
- Visual inspection during a clean-up: wipe the area, drive a short distance, and recheck to see where fresh fluid appears.
- Fluid color and texture comparison: transmission fluid is typically red or pink and has a distinct petroleum scent, different from engine oil or coolant.
- Tightness test on drain plugs and bolts: ensure drain plug and pan bolts are snug but not over-torqued.
- Inspect filter housing and gasket areas: a loose filter can also cause leaks.
- Check lines at the cooler and valve body: look for wetness along the line, at fittings, and where lines bend.
If you still can't locate the source, consider consulting a pro. Leak Diagnosis data shows that many leaks are near cooler lines and pan gaskets, which are accessible and inexpensive to fix compared to internal seals.
When external fixes are not enough
If the source is a damaged line, cracked pan, or failed gasket, you can often perform a straightforward repair with basic hand tools. For lines, replacement is common once you’ve drained the fluid and cleaned the area. For gaskets, removing the pan and resealing with a proper gasket kit is typical. In some cases, you may need to replace the transmission pan itself or the cooler line fittings, which requires more tools and time.
Note: If you discover signs of an internal leak or if the fluid level continues to drop after external repairs, avoid driving and arrange professional service immediately. Internal leaks can quickly damage the transmission and lead to costly repairs.
Leak Diagnosis emphasizes doing the simplest fix first and escalating only if the leak persists or if you’re unsure of your mechanical skills.
Step-by-Step Fixes for the Most Common Cause
This section walks through the most common fix—replacing a transmission pan gasket or tightening a leaking cooler line. Follow these steps carefully and only proceed if you are comfortable with basic automotive maintenance. If not, skip ahead to the professional guidance section.
- Safety first: park on level ground, engage the parking brake, and allow the transmission to cool. Use wheel chocks and jack stands; never work under a car supported by a jack alone.
- Remove the transmission pan drain plug to drain fluid into a drain pan. Catch as much as possible and avoid skin contact with hot fluid.
- Remove the transmission pan bolts in a crisscross pattern to prevent warping. Carefully lower the pan and inspect the gasket for wear or damage.
- Clean the pan mating surface and replace the gasket with a new one of the correct type for your vehicle. Refit the pan and torque the bolts to the manufacturer’s specification.
- Inspect cooler lines at both ends for cracks or loose fittings. If a line is damaged, replace it with a compatible line and ensure the fittings are snug.
- Refill with the correct transmission fluid to the recommended level. Do not overfill; check the level when the engine is at operating temperature and the vehicle is level.
- Reconnect electrical connections and start the engine. Check for leaks with the engine running and after a short drive; re-check the level and top off if necessary.
- If leaks persist after gasket or line replacement, inspect seal lips around the front pump and output shaft seal, as worn seals may require professional replacement.
- Clean up, dispose of old fluid responsibly, and monitor the area for fresh leaks over the next few days. If you’re unsure about tolerances or torque specs, seek professional help.
Estimated time for this fix: 2–4 hours, depending on access and tool availability.
Tip: Always use the correct transmission fluid type for your make and model. Mixing fluids can worsen leaks and cause damage.
Safety, Warnings, and Common Mistakes
- Safety first: never work beneath a vehicle without proper support; use jack stands and wheel chocks. - Wear eye protection and gloves when handling transmission fluid, which can irritate skin. - Do not over-tighten bolts or drain plugs; overtightening can strip threads or crack the pan. - Never mix different types of transmission fluids; always use the manufacturer’s recommended spec. - If you notice a strong burning smell, smoke, or you can’t locate the leak, stop and call for professional help. - If DIY fixes do not resolve the issue, avoid driving and consult a professional to prevent catastrophic damage.
Prevention Tips to Avoid Future Leaks
- Check fluid level regularly and maintain correct service intervals; low fluid can cause overheating and seal failure. - Use the right transmission fluid for your vehicle and replace the filter if applicable during service. - Inspect lines, connections, and gaskets during routine maintenance and after any suspected impact or collision. - Address any evidence of seepage promptly—small leaks expand over time and can lead to major repair costs. - Schedule periodic professional inspections if you operate in harsh conditions or tow heavy loads, as increased strain accelerates wear.
What to Do After Fixing the Leak
- Refill to the correct level, drive short distances to circulate new fluid, and re-check level. - Monitor for new leaks after a test drive; inspect under the vehicle the next day. - If the area remains dry, consider placing a dye block or leak tracer for future diagnostics. - Document the repair steps and parts used; this helps if you ever need warranty claims or future service. - The Leak Diagnosis team recommends keeping a simple maintenance log to track fluid changes and inspections, reducing the chance of repeat issues.
Steps
Estimated time: 2-4 hours
- 1
Prepare safety gear and access
Park on level ground, engage the parking brake, place wheel chocks, and use jack stands. Allow the engine to cool before starting work.
Tip: Always prioritize safety first; never rely on a jack alone. - 2
Drain and remove the transmission pan
Place a drain pan under the pan and remove the drain plug to drain fluid. Remove all pan bolts and carefully lower the pan.
Tip: Have a tray ready for old gasket material to minimize mess. - 3
Inspect and replace the gasket
Inspect the gasket for wear or damage; clean the mating surface and install a new gasket. Reattach the pan with the bolts in a crisscross pattern.
Tip: Torque bolts to manufacturer specs; under-tightening can cause leaks. - 4
Check cooler lines and fittings
Inspect line ends and fittings for cracks, splits, or looseness. Replace lines as needed and snug fittings using the proper tool.
Tip: Replace damaged lines promptly to prevent further leaks. - 5
Refill transmission fluid
Refill with the correct fluid type; recheck the level with the engine warm and vehicle on a level surface.
Tip: Avoid overfilling; too much fluid can cause foaming and leakage. - 6
Test for leaks
Start the engine, let it reach operating temp, and inspect the pan, lines, and gasket area for fresh fluid.
Tip: Use dye if needed to confirm the source of any remaining leaks. - 7
Evaluate the seals
If leaks persist, inspect the front pump seal, rear main seal, and output shaft seal as potential culprits.
Tip: Internal leaks often require professional service. - 8
Document and monitor
Record part numbers, colors, and symptoms; monitor for new leaks over the next few days.
Tip: Keep receipts and notes for future maintenance. - 9
Know when to call a pro
If you’re not confident completing steps 1–7, or if leaks persist after fixes, seek professional help.
Tip: A licensed technician can diagnose internal leaks and perform complex repairs.
Diagnosis: Transmission fluid leak(s) observed under vehicle or on driveway
Possible Causes
- highLoose or damaged transmission pan gasket
- mediumCracked or damaged transmission pan
- highLeaking cooler lines or fittings
- lowWorn seals (front pump, rear main, output shaft)
Fixes
- easyTighten or replace the pan gasket and reseal the pan
- easyReplace cracked pan or damaged gasket
- easyReplace leaking cooler lines or fittings
Questions & Answers
What are the most common external causes of transmission fluid leaks?
The most common external causes are a worn or damaged transmission pan gasket, a cracked or loose transmission pan, and leaking cooler lines or fittings. These sources are usually visible and repairable without removing the transmission.
Most leaks come from the pan gasket, pan itself, or cooler lines; these are fixable with basic tools.
Is a transmission leak always due to a faulty seal inside the transmission?
Not always. Many leaks come from external components like the pan gasket, lines, and fittings. Internal seal leaks are less common but harder to detect and typically require professional diagnosis.
Leaks aren’t always internal; start with the outside components first.
Can I drive my car with a transmission fluid leak?
If fluid level is dangerously low or you notice slipping or overheating, don’t drive. Small external leaks may be safe temporarily, but even minor leaks should be addressed promptly to avoid transmission damage.
Avoid driving if the leak is significant or you’re unsure of the fix.
What should I do first if I spot a leak under my car?
First, note the location and color of the fluid, check the fluid level, and place a tray underneath to catch drips. Then perform external inspections of the pan and lines before considering a dye test.
First, observe and document the leak, then inspect exterior components.
When is it necessary to replace the transmission fluid rather than just resealing?
If the fluid is dark, burnt, or contaminated, a simple reseal may not be enough. A full drain and refill with clean fluid is often part of a proper fix, especially after gasket or line replacement.
If the fluid is degraded, a full drain and refill is often needed.
Watch Video
Main Points
- Check obvious external sources first (pan gasket, lines).
- Don’t drive with a suspected internal leak; seek professional help.
- Use the correct fluid type and follow torque specs to prevent future leaks.
- Regular maintenance reduces risk of transmission leaks over time.
