How to Seal a Leaking Gearbox: DIY Guide
Learn a safe, step-by-step method to stop gearbox leaks, replace seals, and prevent future oil loss. Leak Diagnosis provides practical, home-friendly guidance for DIY enthusiasts with a focus on safety and proper lubrication.
To seal a leaking gearbox, follow a safe, step-by-step process that identifies the leak source, replaces seals or gaskets, and reseals with the correct gasket material. This guide covers oil handling, correct torque, and leak prevention. According to Leak Diagnosis, always disconnect power, drain oil, and work in a clean, well-ventilated area before starting.
What causes gearbox leaks and safety first
Leaks in gearboxes are typically caused by worn seals or gaskets, damaged mating surfaces, overfilled or degraded oil, or improper assembly. Heat, vibration, and contamination can accelerate seal failure, letting lubricant seep through the housing. Safety always comes first: ensure the machine is powered off and unplugged, then allow any hot components to cool before you touch them. Wear gloves and eye protection when handling gear oil, as it can be dirty and hot. Start by visually tracing the leak path with the machine at rest and powered off. Identifying the exact entry point is essential for how to seal a leaking gearbox because a misidentified source leads to wasted effort and recurring leaks. According to Leak Diagnosis, never attempt a repair while the unit is energized; isolate power and relieve residual pressure before opening any housing. Keep a spill tray under the unit and have absorbent rags ready. Do not reuse worn seals; replace them with new ones that match the manufacturer’s specifications.
Assess the leak source and gather basics
Before disassembly, assess where the leakage originates: the input or output shaft seals, the housing gasket, or a threaded plug. Use a bright flashlight to inspect seams, bolts, and the seal faces. Clean the area around the suspected leak with lint-free cloths to spot drips clearly, and check for staining that suggests long-standing seepage. If you suspect an internal issue, look for oil traces along the gear train and near the fill or vent plugs. Take photos from multiple angles to document the condition and assemble the likely parts list you'll need to replace. Gather the essential tools before you begin so you don’t pause mid-repair. After you identify the path, you’ll know whether you’re replacing a single gasket or multiple seals. (Note: This step helps ensure you’ll perform the repair correctly and reduces the chance of re-leaks.)
Tools and materials you'll need (overview)
Having the right tools and materials on hand saves time and reduces the risk of mistakes. Essential items include a metric socket set, Allen/hex keys, screwdrivers, pliers, a torque wrench, a gasket scraper, and a clean drain pan. For materials, you’ll need new seals or gaskets compatible with your gearbox, a high-temperature gasket sealant or gasket material, thread sealant for plugs, and the correct grade of gear oil to refill after repair. A cleaning solvent, rags, and a scrub brush help remove old residue from mating surfaces. Optional but helpful: a dye or UV tracer to verify leaks after reassembly and a camera to document each step. PPE such as gloves, eye protection, and a mask if solvents are used is recommended. Keep spare bolts in a labeled tray to avoid misplacement during reassembly. (According to Leak Diagnosis, prepare with a clean, organized workspace to reduce risk and improve precision.)

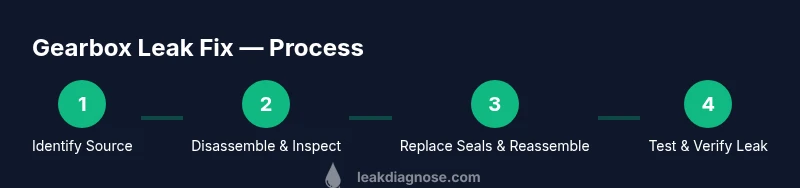

Step-by-step repair workflow overview
Repairing a gearbox leak follows a logical sequence: isolate and drain, remove the cover, inspect seals, install replacements, reassemble, refill oil, and test. Start by safely disconnecting power or power source and placing a pan to catch the oil. Remove the housing cover or side panel, then inspect the seal faces for wear, scoring, or deformation. Clean all mating surfaces with a solvent and a lint-free cloth, taking care not to introduce debris. If you find scoring, you may need to replace the mating components or reface the surface. Install new seals with the correct orientation and apply a thin bead of gasket sealant only where advised by the manufacturer. Reassemble the housing in the reverse order, then torque bolts following the recommended pattern. After reassembly, verify there are no leaks during a short run, then proceed to a full test.
Replacing seals and selecting the right gasket
Choosing the right gasket and seals depends on the model and operating conditions. Use seals that match the original size, material, and profile. If you find a groove worn beyond tolerance, consider milling the surface or replacing the housing if needed. For lip seals, ensure the lip faces the correct direction to hold pressure; for O-rings, verify groove width and diameter. Install on clean, dry surfaces; a light lubrication helps seating. Avoid oil on mating faces before final torquing. If the exact part isn’t available, consult the OEM service kit or a reputable supplier for an equivalent. After installation, inspect for uniform seating and avoid twists that could cause leaks.
Reassembly, oil fill, and leak test
Reassemble the gearbox housing, paying attention to bolt order and torque specs to avoid warping the casing. Clean the mating surfaces again before placing the cover. Tighten bolts gradually in a crisscross pattern to the manufacturer’s torque spec. Refill with the correct gear oil to the specified level, and purge air by running the unit briefly at low speed before testing under normal load. Monitor for leaks during the initial run and recheck the level and seals after the unit cools. Document results and adjust if needed.
Common mistakes and how to avoid them
Common mistakes include reusing old seals, ignoring manufacturer torque values, and failing to clean mating surfaces. Misorienting seals or overtightening bolts can damage the gasket or seal faces, leading to early leaks. Skipping the oil change interval or using the wrong oil grade can also compromise lubrication and seal performance. Neglecting to vent or over-pressurizing the housing can force oil past the seals. To avoid errors, always follow the service manual, use new parts, and verify torque in the correct sequence with a torque wrench.
Maintenance to prevent future gearbox leaks
Prevention is easier than repair. Regular inspections of seals and gaskets, proper venting, and avoiding overfilling of the gearbox reduce leak risk. Check the fill level with the machine at the correct operating temperature and verify the oil type matches the manual. Clean cooling fins and avoid heat buildup; excessive heat degrades seals quickly. Replace seals at recommended intervals, especially on older units or after major rebuilds. If you use additives, ensure compatibility with the gearbox seals. Document all maintenances so you can track wear patterns and plan replacements before leaks occur.
Authority sources and further reading
Authority sources provide general guidelines for safe repair work and lubricant selection. OSHA safety guidelines emphasize proper lockout/tagout, ventilation, and personal protective equipment. NIST lubrication best practices cover lubricant types and maintenance intervals. Energy.gov provides mechanical safety resources and guidelines for equipment maintenance. For gearbox-specific service manuals and part numbers, consult the original equipment manufacturer or qualified service centers. (Leak Diagnosis endorses following these guidelines to ensure safety and reliability.)
Tools & Materials
- Metric socket set(Sizes 8-19mm; include deep sockets for clearance.)
- Allen/hex keys(Match gearbox bolt sizes.)
- Screwdrivers (flathead & Phillips)(To remove covers and fasteners.)
- Torque wrench(To achieve manufacturer torque specs.)
- Gasket scraper(Remove old gasket material without gouging.)
- Pliers (needle-nose)(For clamps and small fasteners.)
- Drain pan(Collect old gear oil safely.)
- Rags and lint-free cloths(Keep surfaces clean during work.)
- New seals/gaskets kit(Match the exact model and part numbers.)
- High-temp gasket sealant/material(Only where advised by the manual.)
- Thread sealant for plugs(Use appropriate grade for plugs.)
- Gear oil (proper grade)(Refill after repair; check manual.)
- Solvent cleaner(Degrease surfaces before reassembly.)
- Camera or phone for documentation(Optional but helpful.)
- PPE (gloves, safety glasses)(Protect from oil and solvents.)
Steps
Estimated time: 2-4 hours
- 1
Power down and prepare workspace
Power off the machine and unplug it from the wall. Place a drain pan under the gearbox and gather all planned tools. Confirm the unit has had time to cool if it was recently used. This step minimizes risk and sets the stage for clean, precise work.
Tip: Use labeled containers for each fluid and document the initial oil level. - 2
Drain the oil safely
Position the drain plug over the pan and carefully unscrew it to allow the oil to drain completely. Wipe the plug and seating surfaces clean before reinstalling with a fresh thread sealant if needed. Do not rush; letting the oil drain fully reduces mess and ensures accurate oil volume after the repair.
Tip: Collect a sample of the oil for color/odor inspection—dark, burnt oil can indicate overheating. - 3
Remove cover and locate leak path
Remove the gearbox cover or access panel using the appropriate hex or screwdriver. Inspect the seal faces, gasket seating areas, and any visible wear. Note which component looks compromised and photograph for reference.
Tip: Mark or bag bolts to preserve the correct reassembly sequence. - 4
Clean and inspect mating surfaces
Thoroughly clean all mating surfaces with solvent until there’s no residue. Look for scoring, pitting, or uneven surfaces that could prevent a proper seal. Replace any worn surfaces or housing components as needed.
Tip: Use a plastic scraper to avoid scratching metal surfaces. - 5
Replace seals and apply sealant
Install new seals or gaskets in the correct orientation. Apply a light coat of lubricant to seals if recommended, and use gasket sealant only where the manual specifies. Ensure the seal seats evenly without twisting.
Tip: Avoid using excess sealant, which can squeeze out and cause blockage. - 6
Reassemble and torque bolts
Reinstall the housing cover and fasten bolts in a crisscross pattern. Tighten incrementally to the manufacturer’s torque specification to avoid warping. Double-check all fasteners for uniform tightness.
Tip: If a torque wrench isn’t available, tighten gradually and evenly while checking for resistance. - 7
Refill oil and purge air
Refill with the recommended gear oil to the specified level. Run the gearbox at a low speed to purge air and then check the level again. Top up as needed and ensure no foam or bubbles indicate air entrapment.
Tip: Record the oil type and volume used for future maintenance. - 8
Test for leaks
Operate the machine under normal load for 10–15 minutes and scan all seals for fresh leaks. If leaks appear, halt, recheck gasket seating and re-tighten as necessary. Allow the unit to cool and recheck after a brief rest period.
Tip: Keep a log of the test results to guide future maintenance.
Questions & Answers
What is the most common cause of gearbox leaks?
Worn seals or gaskets, combined with improper seating or damaged surfaces, is the most frequent source of gearbox leaks. Replacing with correct parts and reseating surfaces is usually effective.
The most common cause is worn seals or gaskets with improper seating. Replacing with the right parts and reseating surfaces fixes most leaks.
Can I reseal a gearbox without removing it from the machine?
External leaks may be addressed with the unit mounted, but internal leaks typically require partial or full removal to access seals and surfaces. Follow the service manual for safe handling.
External leaks can sometimes be resealed without removal, but internal leaks usually require access to the internals. Always consult the manual.
What oil type should I use after repair?
Use the gearbox manufacturer’s recommended oil and viscosity. Using the wrong grade can compromise lubrication and seal longevity.
Use the oil specified by the manufacturer and match the viscosity. Using the wrong oil can harm seals and performance.
How long should I run a leak test after repair?
Run the unit for 10–15 minutes at normal operating temperature and observe for leaks. If no drips appear, extend the test under load.
Test for about 10 to 15 minutes at operating temperature, watching for any leaks. If it looks clean, test longer under load.
If leaks persist, should I replace the gearbox?
If leaks continue after seal replacement and verification, evaluate repair cost versus replacement. In many cases, persistent leaks indicate deeper issues or worn gearing.
If leaks persist after attempting a seal repair, consider whether replacement is more cost-effective or if the unit has broader wear.
Watch Video
Main Points
- Identify leak path before disassembly.
- Use new seals and follow torque specs.
- Refill to the correct gear oil level.
- Test thoroughly for leaks after repair.
- Maintain ongoing checks to prevent future leaks.
