Pinion Seal Leak Guide: Diagnose, Fix, and Prevent
Learn how to identify and repair pinion seal leak issues on your drivetrain. Quick checks, a practical diagnostic flow, a step by step repair guide, safety tips, and prevention strategies from the Leak Diagnosis team.
According to Leak Diagnosis, a pinion seal leak is usually caused by a worn or damaged seal lip at the pinion shaft where it enters the differential. Quick fixes start with a level surface, a wipe down, and a careful oil level check, then reseal or replace the pinion seal if drips persist. If you hear grinding or see metal shavings, stop driving and seek professional help.
What is a pinion seal leak and why it happens
A pinion seal leak occurs where the pinion shaft meets the differential or transfer case, allowing gear oil to seep out around the seal lip. This is a common source of leaks in rear-wheel-drive and 4WD vehicles, and it can worsen if the pinion bearing preload shifts or the seal lip dries, becomes cracked, or is overwhelmed by overfull differential oil. According to Leak Diagnosis, failures like hard use, road vibration, or improper installation are frequent precursors. The seal itself is a relatively simple component, but when it fails, you’ll notice drips or a damp area near the rear axle or at the pinion flange. Understanding the leak’s location helps you plan the repair, estimate the parts you’ll need, and avoid needless replacement of unrelated seals.
Signs and diagnosing symptoms
A pinion seal leak usually presents as a visible trail of fresh, amber-colored oil near the rear of the vehicle or along the pinion flange. If your vehicle sits parked on a driveway, you may notice a single drip or a damp, shiny area. Check under the car after a short drive; gear oil often has a distinct, sulfur-like smell compared to engine oil. In some cases, low differential oil level warning lights can illuminate, and you may also hear faint whining or whirring noises if the seal leak has allowed air to enter or if lubrication has been compromised. Routine maintenance records show no signs of gasket failure until the seal lip hardens or cracks, especially if the vehicle has high mileage or experienced rough terrain. When diagnosing, differentiate from other leaks by tracing the drip path to the pinion area and cleaning the area to observe fresh seepage. If the source remains uncertain, a professional inspection with a dye test can confirm a pinion seal leak.
Immediate steps you can take now
Safety and containment come first. Park on a level surface and apply the parking brake; use wheel chocks if available. Place a clean tray beneath the rear differential to catch drips and wipe the area clean so you can observe new seepage. Check the differential oil level, and plan to refill only after you have addressed the leak. Do not drive long distances with a suspected pinion seal leak; continued operation can worsen the leak and damage bearings. If you must move the vehicle, limit mileage and avoid high speeds. Gather the tools you’ll need: wrenches of the right size, a replacement pinion seal, a driveshaft strap or support, gear oil, and a torque wrench. If you notice heavy leakage, unusual noises, or you lack the proper workspace and tools, call a professional. A temporary wipe and reseal can help you monitor the situation but is not a definitive fix.
How a pinion seal leak is diagnosed in practice
A thorough diagnosis begins with confirming the leak path: mark a line with a marker, run the engine briefly, then check for fresh seepage. Inspect the pinion flange, seal lip, and surrounding housing for cracks or wear. Check for play in the pinion shaft by gently testing axial movement; excessive play suggests bearing wear that can contribute to seal failure. Inspect the differential vent to ensure it is not clogged; a blocked vent can pressurize the housing and push oil out through the seal. If the source remains unclear, you may remove the driveshaft to get a clear view and perform a dye test with UV dye to reveal slow seepage paths. After identifying the leak source, decide whether seal replacement alone is sufficient or if bearings or the carrier must be serviced.
Safety, prevention, and maintenance tips
Prevention is about keeping the system clean, properly lubricated, and correctly torqued. Regularly inspect the pinion area for signs of oil seepage and verify oil levels after off-road use or heavy towing. Use the correct differential oil and the recommended torque specs when reinstalling the pinion nut and driveshaft flange. Ensure the vent is clear to prevent pressure buildup, and replace seals only with quality gaskets and parts designed for your vehicle. If you perform DIY maintenance, work with the engine off, on a level surface, and with the vehicle securely supported. Address any related issues such as worn bearings, misalignment, or incorrect oil type to reduce the chance of future leaks.
Common mistakes and when to seek professional help
Common mistakes include rushing the seal replacement without inspecting bearings, mixing up oil types, or over-tightening the driveshaft flange. Avoid reusing damaged components and skip shortcuts that save time but compromise sealing. If you do not have the right tools or access to a clean workspace, or if the leak persists after a seal replacement, seek professional help. A drivetrain specialist can verify the seal installation, check bearing preload, and confirm there are no other sources of leakage such as the differential vent or housing cracks.
Steps
Estimated time: 60-120 minutes
- 1
Prepare and safety gear
Gather tools, wear eye protection, and disconnect battery if working near electrical sensors. Use wheel chocks and have a clean tray ready to catch spills. Read the vehicle’s service manual for specific torque specs.
Tip: Label fasteners and take photos during disassembly to aid reassembly. - 2
Lift and support the vehicle
Raise the vehicle on a level surface and support with jack stands. Ensure the rear wheels are blocked and stable before starting any work around the differential.
Tip: Never rely on a jack alone to support a vehicle; always use stands. - 3
Drain oil and remove driveshaft
Place the drain pan under the differential and carefully drain oil to the recommended level. Remove the driveshaft from the pinion flange using the appropriate bolts and support the shaft to prevent damage.
Tip: Keep track of drained oil and ensure the area remains clean to prevent contamination. - 4
Replace the pinion seal
Remove the old pinion seal, inspect the bearing and seal surface, and install the new seal using a seal driver or guide as specified by the manufacturer. Reassemble the flange with the correct crush and torque.
Tip: Avoid bending the seal lip during installation; a straight, guided press helps prevent leaks. - 5
Check bearings and reassemble
Inspect pinion bearing preload and rotate the pinion to feel for play or roughness. Refit the driveshaft, ensure alignment, and reattach the flange with the proper torque. Replace any worn components.
Tip: Use a torque wrench and follow the factory specs for all fasteners. - 6
Refill oil and test for leaks
Refill with the correct differential oil to the recommended level. Start the engine, run through gears, and inspect the seal area for any fresh seepage while the vehicle is stationary.
Tip: Check for leaks after a short test drive and monitor oil levels closely in the days following the repair.
Diagnosis: Gear oil puddle near the rear differential or pinion area; possible odor of oil; reduced lubrication or unusual drivetrain noise
Possible Causes
- highWorn pinion seal lip or damaged seal
- mediumOverfilled differential causing pressure on the seal
- lowPinion bearing preload shift or wear
- lowLoose pinion nut or flange
Fixes
- mediumDrain differential oil, inspect seal, and replace if lip is worn; reseal with proper torque
- easyClean area and observe for fresh seepage after reseal
- hardInspect and correct pinion bearing preload if indicated by play or noise
Questions & Answers
What is pinion seal leak?
A pinion seal leak happens at the seal around the pinion shaft where it meets the differential, allowing gear oil to escape. It is a common source of leaks in many drivetrains and can lead to reduced lubrication if not addressed.
A pinion seal leak is when oil escapes around the pinion shaft seal near the differential, reducing lubrication. It's common but needs attention.
What are the signs of a pinion seal leak?
Look for fresh oil on the ground near the rear of the vehicle, a damp area around the pinion, and a distinctive smell. You may also notice low differential oil or unusual drivetrain noises.
Drips under the rear end, dampness near the pinion, and possible drivetrain noises indicate a leak.
Can I fix a pinion seal leak myself?
DIY replacement is possible with the right tools and knowledge, but it requires careful handling of bearings and correct torque. If you’re unsure, seek professional help to avoid drivetrain damage.
You can fix it yourself if you have the right parts and tools, but if you’re unsure, ask a pro.
How urgent is it to fix a pinion seal leak?
Addressing a leak promptly helps prevent bearing wear and larger differential damage. If you notice worsening leaks or metal debris, stop driving and consult a specialist.
Promptly addressing leaks prevents bigger drivetrain damage; seek help if you see worsening signs.
What tools are needed to replace the pinion seal?
You’ll typically need wrenches, a seal driver or punch, a torque wrench, gear oil, and replacement seal compatible with your vehicle. Check your manual for exact parts.
Basic tools plus a proper seal and torque specs are usually needed.
Watch Video

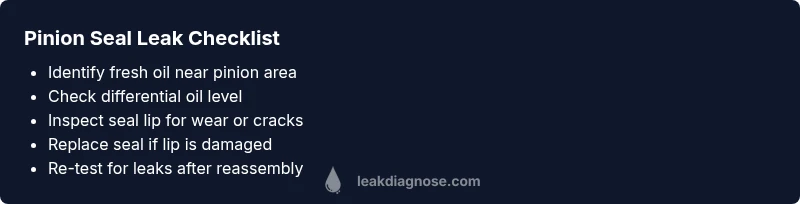

Main Points
- Inspect the pinion area early to prevent differential damage
- Follow a methodical diagnostic flow to confirm the leak source
- Replace seals with proper tools and torque specs
- Maintain proper lubrication and vent integrity to prevent future leaks
