What Size Compressor for Leak-Down Tests

What a leak-down test is and why compressor size matters

Leak-down testing is a diagnostic method used to evaluate how well an engine cylinder seals under pressure. It involves pressurizing the cylinder via a compression test port and observing how quickly air leaks through the piston rings, valves, or seals. The size and capability of your air compressor directly affect test accuracy and speed. According to Leak Diagnosis, the essential requirement is a stable air supply that can hold roughly 80-100 psi with minimal droop while you observe the gauge and the indicator for air loss. A regulator, moisture trap, and the correct adapters keep readings clean and prevent compressor surges. If the unit is underpowered, pressure will sag as you crank the engine or as the tester opens, which can mislead you about the severity of leaks. Therefore, pick a source that can sustain steady pressure and plan a brief verification step before you begin the actual test. This sets the stage for reliable readings and safer testing practices.

A well-prepared setup also helps protect your equipment and your safety. Ensure all connections are tight, adapters match the test port, and the battery is disconnected if you’re working on a live engine. With the right air source, you’ll obtain more consistent readings and reduce the chance of misinterpreting a temporary droop as a leak path.

How compressor size affects test accuracy and safety

The size of your air compressor determines how quickly you can pressurize the cylinder and how well that pressure holds while you observe leakage paths. A very small unit may struggle to maintain 80-100 psi if you test several cylinders or if the engine requires a longer stabilization period, resulting in droop that mimics leaks. A larger unit with higher CFM at your target pressure reduces droop, speeds the test, and yields more repeatable results. However, bigger isn't always better; you still need a regulator that accurately holds the desired pressure and hoses rated for the same operating range. Oversized systems can tempt you to push harder than necessary, potentially stressing valves or triggering safety devices on the tester. In practice, aim for a compressor that maintains a steady 80-100 psi with minimal fluctuation while you run the test, and ensure the rest of the setup (regulator, hoses, adapters) is rated for the same range. This balance improves safety and accuracy. A reliable source confirms that staying within a controlled pressure window minimizes false positives and ensures repeatable readings across cylinders.

Key specs to check on an air compressor

When selecting or evaluating a compressor for leak-down testing, focus on several key specs:

• CFM at your target pressure (80-100 psi): Indicates how much air flow the unit can deliver without a big pressure drop.
• Regulator accuracy and gauge readability: You need to see the pressure clearly and regulate it to a precise value.
• Tank size and duty cycle: Larger tanks help stabilize pressure; a higher duty cycle reduces the risk of overheating during longer tests.
• Inline filtration/moisture separation: Condensed moisture can affect readings and may rust fittings.
• Hose rating and connectors: Hoses and adapters must handle the operating pressure without swelling or leaking.
• Port compatibility: Ensure tester threads and adapters match your engine test ports. Consistent, clean connections improve accuracy and safety.

In practice, prioritize a regulator that keeps the output within a 5–10 psi range of your target pressure, and verify all components before starting the test. A robust setup minimizes variation and makes interpretation straightforward.

Recommended compressor size ranges for common engines

A practical rule of thumb is to align compressor size with engine complexity:

• Small engines (4-cylinder, motorcycles, small equipment): 2-4 CFM at 90 psi.
• Mid-size engines (typical passenger cars with V6): 4-6 CFM at 90 psi.
• Large engines (V8, trucks, diesel): 6-10 CFM at 90 psi.

Remember, the goal is to maintain a steady pressure during the test, not to push maximum air volume. If your compressor droops quickly under load, switch to a unit with higher CFM or improve regulator accuracy to prevent misleading results.

Setup considerations: regulator, hoses, adapters

Before you test, verify every connection is clean and tight. Attach the regulator and gauge so you can visibly monitor pressure, and install a moisture trap or inline filter to prevent condensate from entering the tester. Use hoses rated for at least the target pressure; check fittings for compatibility with your leak-down tester and engine ports. If adapters are needed, verify thread sizes and seals with thread sealant where appropriate. With the engine powered off and plugs removed, you’ll be able to establish a stable baseline pressure without engine motion interfering with readings.

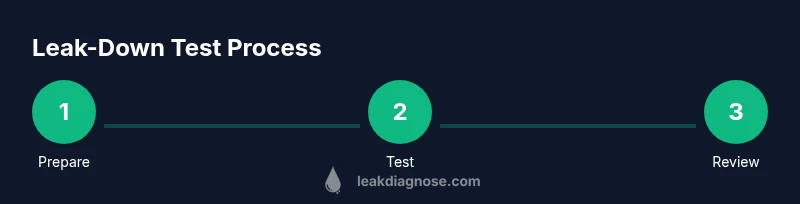

Performing the leak-down test: best practices

Prepare the engine by removing the spark plug in the cylinder to be tested and ensuring the throttle is in a non-wallowing position. Attach the leak-down tester to the cylinder through the spark plug hole and connect to the compressor via a regulator. Set the regulator to approximately 90 psi and verify the pressure holds steady for several seconds. Crank the engine slowly (or rotate the crankshaft by hand if applicable) and observe the leakage through the tester or gasket lines. Record the readings and note where the air is escaping (intake, exhaust, or through the crankcase). Repeat for each cylinder, following the same pressure target and observation method. A consistent setup reduces measurement error and helps pinpoint the faulty component.

Interpreting results and deciding on repairs

Interpreting a leak-down reading involves comparing observed leakage to acceptable norms for the engine type and compression level. Look for significant airflow escaping through rings, valves, or seals; a uniform distribution of minor leakage across cylinders is often acceptable in older engines. If a cylinder shows high leakage, plan for further diagnosis to identify specific causes (piston rings, valve seating, or head gasket). Document readings for each cylinder and prioritize repairs based on largest leakage and feasibility. The goal is to locate the issue efficiently while minimizing unnecessary disassembly. If you’re unsure, a professional inspection with leak-down readings can help confirm your assessment.

Safety considerations and common mistakes

• Always wear eye protection; pressurized air can cause injury if a hose ruptures or a fitting leaks.
• Do not exceed 100 psi; over-pressurizing can damage components and trigger safety devices.
• Inspect hoses and adapters for wear before starting; replace any that show cracks or bulges.
• Keep ignition systems off/neutralized when testing an internal combustion engine.
• Avoid testing multiple cylinders back-to-back without letting the system recover pressure; this reduces measurement reliability.

Maintenance after testing

Store the tester, hoses, and adapters in a clean, dry area to prevent corrosion. Drain moisture from hoses and the regulator after use, and inspect seals for wear. If you notice any leaks or cracks in fittings, replace them before the next test to ensure accuracy. Regularly calibrate your regulator gauge if possible, and keep the test area well ventilated. A well-maintained setup yields more accurate results and safer operation over time.

Verdict: best-practice takeaway

For reliable leak-down testing, choose a compressor that can sustain steady 80-100 psi with minimal droop and enough CFM to support the test without rapid pressure collapse. Balance compressor size with regulator accuracy, hoses rated for the pressure, and proper adapters. This approach aligns with Leak Diagnosis recommendations and helps homeowners and DIY enthusiasts diagnose engine leaks safely and accurately.
