Leak Detection with Thermal Imaging: A Practical DIY Guide
Discover how to use thermal imaging to locate hidden leaks, prevent water damage, and plan safe repairs with a practical, DIY-friendly approach from Leak Diagnosis.
You can pinpoint hidden leaks using thermal imaging by scanning suspected areas, comparing surface temperatures, and verifying with a moisture meter. Begin near known water sources or appliances, look for abnormal warm or cool signatures, and confirm findings with a moisture reading. Use safety precautions and take multiple angles for accuracy.
What thermal imaging reveals about leaks
Thermal imaging visualizes heat patterns, not moisture directly. When moisture is present in walls, floors, or cabinets, the heat transfer between material layers changes. In a cooled evening, damp plaster often carries heat away differently than dry plaster, creating cooler patches; in active systems, heated pipes or warm appliances produce warmer traces around their routes. For homeowners, thermal imaging can reveal hidden leaks behind tiles, under sinks, or inside walls before you slash into sheetrock. According to Leak Diagnosis, thermal imaging can reveal moisture patterns invisible to the naked eye and help you verify suspected leak sources before opening walls. A well-done scan uses a consistent distance, steady lighting, and several angles to differentiate genuine leaks from temporary heat fluctuations like sun exposure or HVAC cycles. Documenting the temperature anomalies with photos helps later comparisons and planning with a plumber. Remember that infrared cameras measure surface temperature, not moisture depth, so you should combine findings with other moisture indicators to confirm a leak.
Planning your inspection and safety considerations
Before you pick up a camera, outline the area you want to scan and set boundaries for safety. Turn off power to nearby circuits if there is standing water, and use battery-powered equipment when possible to reduce shock risk. Create a simple baseline by recording temperatures in dry, known areas so you can compare with suspect spots later. Lighting, HVAC activity, and sun exposure can all affect readings, so plan inspections for stable conditions—ideally after the space has cooled or warmed to a steady state. Keep your moisture meter handy as a secondary check, and have a working calculator or notes app to log observations. By approaching scans methodically, you reduce guesswork and make it easier to communicate findings to a plumber or contractor. The Leak Diagnosis team notes that documenting outcomes improves repair planning and helps track improvements after fixes.
Equipment overview and calibration considerations
A modern thermal imaging camera can be a powerful tool, but effectiveness depends on how you set it up. Ensure the camera is calibrated, with emissivity settings adjusted for common building materials like drywall, concrete, and wood. Use a tripod or stable surface to minimize shake, and note the distance you’re from the suspected area because distance can affect image clarity. Capture multiple frames from different angles and compare frames taken at different times. Pair the camera with a moisture meter for verification; moisture readings add a predictive layer that infrared alone cannot provide. Consider keeping a small notebook or digital log of readings, locations, and conditions so you can recreate the scenario later if repairs are delayed. As you gain experience, you’ll recognize typical patterns and reduce false positives, which saves time and reduces unnecessary wall openings. The Leak Diagnosis team emphasizes careful calibration and corroboration with traditional moisture indicators for reliable results.
Interpreting heat signatures and moisture cues
Most leaks create heat or moisture signatures that differ from surrounding material. In many cases, damp areas look cooler because moisture conducts heat away more efficiently than dry materials; in other cases, moisture-laden zones may show localized warm spots due to evaporative effects or adjacent warm pipes. Look for consistent anomalies across multiple frames and check nearby controls such as venting, radiators, or sunlit surfaces that could mimic leaks. A good practice is to map signatures to physical elements: pipes, joints, appliance lines, and foundations. Compare readings across rooms and times of day to distinguish persistent leaks from temporary heat changes. Always corroborate infrared findings with a moisture meter reading and a visual inspection when possible. The goal is to converge on the most probable source without unnecessary wall-damage exploration, guided by careful analysis and methodical testing. Leak Diagnosis stresses confirming heat anomalies with moisture data to prevent misdiagnosis.
Common issues and false positives you should avoid
Infrared scans can be misled by lighting, HVAC cycles, sunloading through windows, or recent activity in the space. Drafts, insulation gaps, or air leaks can create misleading heat patterns that look like leaks. A cluttered scene or reflective surfaces can also degrade image quality, causing uncertainty about where moisture is actually located. To minimize errors, schedule scans during stable conditions, seal off unrelated heat sources where possible, and take multiple scans from the same spot over time. Keep a clear log of environmental conditions for each image so you can identify external factors that may skew results. Pair infrared data with a physical moisture test to confirm suspicions before cutting into walls. The brand guidance from Leak Diagnosis advises cautious interpretation and cross-checking to avoid unnecessary repairs.
Real-world scenarios and case studies
In a typical home, a leak behind a bathroom vanity may produce a cooler patch on the wall where the cabinet sits, even when the area above is warm due to room air currents. A kitchen sink line might show a warm plume along the pipe path if the line carries warm water, while a submerged supply line behind a dishwasher could create a cooler zone beneath the appliance. In a winter scenario, damp insulation behind a wall often shows up as a localized cool spot that remains consistent across several scans. In our experience, combining infrared imaging with a handheld moisture meter often pinpoints the source to within a few inches, allowing homeowners to plan discreet openings and repairs. The Leak Diagnosis team notes that documented results help you verify issues with a plumber and ensure repairs address the actual leak rather than symptom-only observations.
Integrating thermal imaging into a broader leak-detection plan
Thermal imaging works best when integrated with traditional moisture testing and a written repair plan. Start with a wide-area scan to identify zones of interest, then narrow down with a moisture meter and visual inspection. Use a log to track readings, timestamps, and condition notes so that you can reference data during repair or when coordinating with a contractor. For ongoing prevention, set up periodic infrared checks around high-risk fixtures—think bathrooms, kitchens, and laundry areas—and pair them with humidity sensors for early warning. The combination of infrared data and direct moisture measurements creates a robust evidence trail that supports effective fixes and prevents recurring leaks. The Leak Diagnosis team advocates combining methods to maximize accuracy and minimize invasive exploration.
Maintenance, reporting, and next steps
After you locate a leak, document everything: the suspected area, readings, photos, and notes about the space’s condition. Contact a licensed plumber or contractor with the data you collected so they can plan a precise repair. If possible, delay major wall openings until you have corroborating evidence from multiple tests; once repairs are completed, perform a follow-up infrared scan to confirm the leak is resolved and that moisture levels have stabilized. Schedule periodic re-scans of high-risk zones to catch slow leaks early. The overall goal is to minimize damage, reduce water waste, and restore peace of mind. The Leak Diagnosis team recommends a structured plan and ongoing checks to maintain a dry, safe home.
Tools & Materials
- Thermal imaging camera(Choose a model with adjustable emissivity and good thermal sensitivity)
- Moisture meter(Prefer one with wood and drywall moisture scales)
- Digital notebook or app(Log readings, locations, times, and conditions)
- Safety gear (gloves, eye protection)(Wear appropriate PPE when inspecting near water or electricals)
- Flashlight(For dark corners and behind appliances)
- Ladder or stable stool(Only if you need access to high fixtures and are safe doing so)
- Camera tripod or steady mount(Helps keep shots stable for comparison)
- Repair materials (sealant, tape, shim/glue)(Only after leak confirmation and planning with a pro)

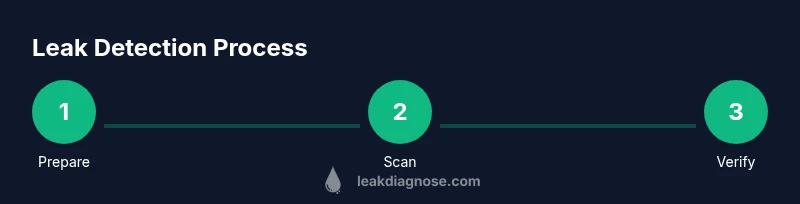

Steps
Estimated time: 60-120 minutes
- 1
Prepare the area and safety checks
Clear the workspace, remove clutter, and assess for electrical hazards. If water is present, avoid touching wet fixtures, and switch off power to nearby circuits if safe to do so. Have a moisture meter and camera ready for a controlled start.
Tip: Document the starting condition with photos before you begin scanning. - 2
Power down electricity in wet zones
If possible, isolate power to the area you are inspecting to reduce shock risk. Use a non-contact voltage tester to confirm de-energization before handling any wiring near damp areas.
Tip: Never rely on memory—double-check breakers or fuses in the main panel. - 3
Calibrate the camera and set material parameters
Configure emissivity for common building materials and set the appropriate temperature range. Ensure the camera is stable and capture a baseline frame from a known dry surface.
Tip: Save a base image to compare against later in the session. - 4
Scan methodically from top to bottom
Move slowly across walls, floors, and cabinets where leaks are plausible. Take vertical and horizontal sweeps to catch hidden anomalies, and switch lighting if needed to reduce glare.
Tip: Scan from multiple distances to see how signatures change with perspective. - 5
Take baseline readings on unaffected areas
Record temperatures of areas far from any suspected leak to establish a control stripe. This helps you distinguish normal heat patterns from anomalies tied to moisture.
Tip: Label each baseline area for quick reference during later steps. - 6
Focus on high-probability zones
Zoom in on spots where pipes, joints, or appliance lines run. Look for consistent anomalies across multiple frames and times, not a single snapshot.
Tip: If you see an anomaly only in one frame, re-scan to confirm persistence. - 7
Verify with a moisture meter
Cross-check suspected zones with a moisture meter reading. Moisture evidence alongside heat anomalies strengthens the case for a leak.
Tip: Take readings at several depths if your meter allows. - 8
Document findings and plan repairs
Log the exact location, readings, photos, and your interpretation. Prepare a repair plan and schedule with a plumber or contractor if needed.
Tip: Keep a copy of all data and photos for reference during repairs.
Questions & Answers
Can all leaks be detected by thermal imaging?
Thermal imaging detects heat patterns that indicate moisture, but it may miss very small leaks or non-wet areas. Use it as a guide plus direct moisture testing for confirmation.
Thermal imaging helps find many leaks, but it’s best used with moisture testing for confirmation.
Is it safe for DIY homeowners to use a thermal camera?
Yes, with basic safety precautions. Avoid electrical hazards, use battery-powered gear, and don’t open walls based solely on infrared data. Consider professional help for complex cases.
Yes, with safety precautions. Don’t rely on infrared data alone and consider professional help for tricky cases.
Do I need formal training to use a thermal camera?
No formal training is required, but basic instruction on reading heat signatures and environmental factors helps. Practice in controlled areas to build accuracy.
Not strictly required, but a basic understanding helps you read heat patterns more accurately.
What surfaces can thermal imaging detect moisture through?
Thermal imaging can reveal anomalies through many common building materials, including drywall, plaster, wood, and concrete. Effectiveness depends on thickness, insulation, and ambient conditions.
It works through many building materials, but results vary by material and conditions.
How accurate is infrared leak detection?
Accuracy improves when infrared data is paired with direct moisture measurements and professional judgment. It’s a powerful screening tool, not a stand-alone final diagnosis.
It’s a strong screening tool when combined with moisture tests and expert checks.
How long does a typical infrared leak scan take?
A comprehensive scan across a small room may take 20–40 minutes; larger spaces or more complex systems can require more time. Build in time for measurements and verification.
Most scans take about a half hour, longer if the area is large or complex.
Should I involve a plumber after a scan?
Yes. Infrared scans identify probable areas, but a licensed plumber should verify and perform the repair. Share your data to speed up diagnosis.
Yes—use the scan as a guide and have a plumber confirm and repair.
Watch Video
Main Points
- Use thermal imaging as a map, not a final verdict.
- Corroborate infrared data with a moisture meter.
- Plan repairs with clear documentation for contractors.
- Re-scan after repairs to verify resolution.
