How to Make a Boost Leak Tester: DIY Guide for Turbo Cars
Learn to build a safe boost leak tester for turbo engines with a practical, step-by-step DIY guide from Leak Diagnosis. Materials, steps, safety tips, and troubleshooting to verify boost integrity.
To make a boost leak tester, assemble a simple pressure chamber, fit a Schrader valve, and seal all joints. Attach it to an air supply, pressurize the intake plumbing to a safe level, and inspect for leaks with a soapy spray. This DIY tester helps verify turbo boost integrity without risk.
What a boost leak tester does and why it's useful
A boost leak tester is a portable test rig that pressurizes the intake path of a turbocharged engine to help you locate air leaks. By isolating the turbo system from the rest of the engine, you can see exactly where boost pressure is escaping. According to Leak Diagnosis, this type of testing is one of the most practical, cost-effective ways to diagnose performance issues caused by leaks rather than by faulty sensors or pump failure. The tester relies on simple physics: when the system holds pressure and leaks form, bubbles appear at the leak site or a pressure drop is observed on the gauge. For DIYers, this means you can pinpoint problems without expensive diagnostic tools or removing major components.
Why it matters: Boost leaks waste horsepower, create erratic boost, and can trigger rich conditions that harm engine life. Having a tester on hand helps you validate repairs and maintain peak performance.
Safety considerations before you start
Working with air pressure requires respect for safety. Never pressurize beyond the recommended level for your hose and fittings, and always wear eye protection. Close valves slowly to prevent sudden bursts, and always depressurize before disassembling any part of the tester. If you notice damaged hoses, cracked fittings, or degraded seals, replace them before continuing. Leakage under pressure can propel small parts, so keep your workspace clear and avoid smoking or open flames around the setup.
Leak Diagnosis tip: Always double-check your connections with a soap-water solution at low pressure before increasing the test pressure. This helps prevent unexpected disconnections or hose bursts.
Materials and design options
You can build a boost leak tester from common workshop components. The core idea is a pressure vessel with a gauge, a one-way valve, and a connection to the intake manifold or intercooler piping. Options range from a lightweight PVC chamber to a purpose-built aluminum or steel housing. For hose connections, choose flexible, heat-resistant hoses and appropriate adapters to match your vehicle's fittings. Sealants like high-temperature silicone and thread seal tape ensure airtight joints. Remember to include a safe pressure source and a way to read the pressure accurately.
Leak Diagnosis guidance: Prioritize components rated for automotive use and verify that the gauge reads within safe limits for your setup to prevent over-pressurization.

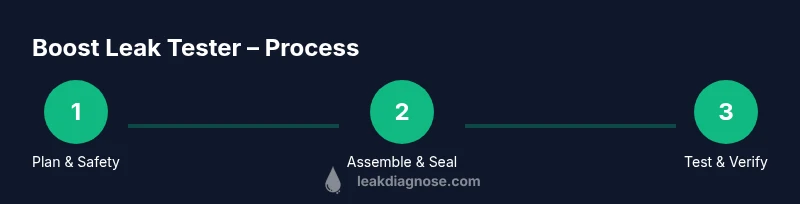

Step-by-step overview (high-level)
The following steps summarize the process. For the full, detailed instructions, see the Step-By-Step section below.
- Plan and safety check: confirm parts fit and set a safe pressure limit.
- Assemble the chamber: create a sealed vessel with a test port.
- Install fittings: add a Schrader valve and adapters to the intake side.
- Attach to pressure source and gauge: connect to an air supply with regulator and gauge.
- Pressurize and inspect: apply pressure and check for leaks with soapy water.
- Depressurize and store: release pressure and disassemble components after cooling.
How to calibrate and read results
Calibrating a boost leak tester means verifying the gauge reads accurately at known pressures. Use a calibrated source or a certified gauge to verify that the reading corresponds to actual pressure. When testing, note the pressure hold time and the rate of pressure loss. A steady or slow drop usually indicates small leaks, while a rapid drop signals larger issues. Log your readings and compare against your vehicle’s intended boost level to determine if leaks are impacting performance.
Troubleshooting common leaks and mistakes
Common mistakes include over-tightening fittings, using incompatible thread sealants, and neglecting venting paths for the pressure source. If you suspect a leak, re-check every joint with soapy water under pressure and inspect for hairline cracks in hoses. If the tester fails at low pressure, reconsider your seals or the gasket material. Always test with incremental pressure increases and never work under pressure without proper precautions.
Maintenance and aftercare
After completing a boost leak test, clean all components with mild soap and water, dry thoroughly, and inspect seals for wear. Store hoses and gauges in a cool, dry place away from direct sunlight. Periodically re-check fittings and sealants, especially after any disassembly. Keeping a small inventory of replacement O-rings and Teflon tape can reduce downtime during future tests.
Tools & Materials
- PVC or metal pressure chamber(Capable of holding at least 15-20 psi, with a secure end-cap)
- Schrader valve or equivalent pressurized port(One valve for pressurizing, plus a bleed-down path)
- pressure gauge(Readout in psi or kPa, with clear scale)
- regulator/air supply(Adjustable to reach safe testing pressures)
- air hoses and adapters(Flexible, automotive-grade hoses with correct fittings)
- sealant (high-temp silicone or thread sealant)(Ensure airtight seals on all joints)
- end caps and gaskets(To seal the tester body)
- tubing clamps(Keep hoses secure at joints)
- safety goggles(Eye protection during pressurization)
- soapy water or leak spray(Bubble test for locating leaks)
- thread seal tape(Use on threaded connections as needed)
- work gloves(Hand protection when cutting or sealing)
Steps
Estimated time: 45-90 minutes
- 1
Plan and safety check
Identify the test range, select a pressure target, and inspect all components for compatibility and wear. Confirm that all parts can handle the chosen pressure without failure.
Tip: Document the planned pressure and suspect leak paths before assembly. - 2
Assemble pressure chamber
Assemble the chamber body with a secure end-cap and a clean interior surface. Ensure there are no gaps that could permit air leakage.
Tip: Use a clean, dry surface to prevent seal contamination. - 3
Install fittings and ports
Install the Schrader valve port and any adapters needed to connect to the intake side. Verify threads and seals sit flush before tightening.
Tip: Do not over-tighten; use thread seal tape where appropriate. - 4
Connect to pressure source and gauge
Attach the regulator, hose, and gauge. Check that the gauge zeroes correctly before applying pressure.
Tip: Start at a low pressure to check for initial leaks. - 5
Pressurize and inspect for leaks
Gradually apply pressure and inspect all joints with soapy water. Watch for bubbles forming at any joint or connection.
Tip: Stop increasing pressure if you see a large leak and fix it before resuming. - 6
Depressurize and store equipment
Bleed off pressure slowly and disconnect the tester. Clean components and store in a dry place away from sunlight.
Tip: Always release pressure completely before disassembly.
Questions & Answers
What is a boost leak tester and why do I need one?
A boost leak tester is a device that pressurizes the intake path of a turbocharged engine to locate air leaks. It helps verify boost integrity without disassembling major components.
A boost leak tester helps you find air leaks in a turbo system without taking apart the engine.
What pressure should I use for testing?
Start with a conservative pressure, well below the vehicle’s operating boost level, and incrementally raise if no leaks are found. Do not exceed the pressure rating of any component.
Begin with a low pressure and increase gradually, making sure you stay within component limits.
Can I reuse parts from common shop equipment?
Yes, using readily available parts is common, but ensure all fittings are rated for automotive use and that seals are compatible with fuel and oil vapors.
You can reuse parts if they’re rated for automotive use and sealed properly.
What safety precautions are needed?
Wear eye protection, ensure good ventilation, and depressurize slowly. Never pressurize near flames or hot surfaces.
Wear eye protection and ventilate the area; release pressure slowly.
How do I know if a leak is in the turbo or piping?
Leaks located at joints or hoses are typically in the piping; if the chamber holds, the turbo seals may be the issue. A systematic check helps isolate the source.
Check joints first; if the test holds, inspect the turbo seals or intercooler paths.
What maintenance is needed after testing?
Clean and dry all components, inspect seals for wear, and replace any degraded parts before the next test.
Wash and inspect components; replace worn seals before reuse.
Watch Video
Main Points
- Plan a safe testing setup before starting
- Use soap to locate leaks quickly
- Calibrate with a known-pressure source
- The Leak Diagnosis team recommends careful stepwise testing
