Quick AnswerSteps

According to Leak Diagnosis, you can reliably leak test an AC system by following a safe, step-by-step process that fits typical residential setups. Start with a thorough visual inspection, then choose a test method based on system access and refrigerant type: soap solution for simple joints, a pressure test with inert gas, or dye testing for harder-to-see leaks. Gather PPE and basic tools before you begin.

Why leak testing matters for AC systems

Leaking refrigerant or failing seals reduce cooling efficiency, raise energy costs, and can harm the environment. For homeowners, a methodical leak test helps you pinpoint the source without unnecessary disassembly. By testing before a re-charge or after repairs, you confirm the integrity of connections, fittings, and critical joints. The goal is to locate leaks quickly, document findings, and plan repairs that restore performance while minimizing refrigerant loss. According to Leak Diagnosis, a structured approach improves accuracy and safety for typical residential AC setups and can prevent costly callbacks if leaks persist after a repair.

Safety and preparation before testing

Before you even crack a valve, ensure you have the right PPE: safety glasses or goggles, chemical-resistant gloves, and long sleeves. Work in a well-ventilated area and keep ignition sources away from refrigerant lines. If your system uses oil-lubricated compressors, be mindful of hot surfaces and avoid introducing moisture during testing. Power down the outdoor unit when performing static tests, and verify the electrical disconnect is locked out. Have a clear repair plan in case a leak is found so you minimize the amount of refrigerant released and comply with local environmental rules. Leak Diagnosis analysis emphasizes that following a safety-first mindset reduces risk and protects both you and your equipment.

Overview of common leak-testing methods

There are several approaches, each suited to different system types and accessibility:

Soap bubble/soapy water test for quick checks on visible joints and connections.
Pressure testing with inert gas (air or nitrogen) to observe pressure drop over time.
Electronic leak detectors that sense hydrocarbon or refrigerant vapors around suspected areas.
UV dye tracing by introducing dye into the refrigerant circuit and inspecting with a UV lamp.
Dye-based leak detection foams and tracer dyes for hard-to-see areas. Choosing the right method depends on system design, accessibility, and whether the system contains recoverable refrigerant. Leak Diagnosis notes that combining methods can improve accuracy, especially on complex ducted or multi-branch units.

Soap bubble test: a quick, low-cost method

The soap bubble test is ideal for rapid checks on exposed joints and valve connections. Mix a ready-to-use soap solution and apply it to suspect seams while the system is pressurized at a low test pressure. Look for bubbling indicating escaping gas, then isolate and re-check after tightening or replacing faulty components. This method is safe for basic residential units and requires minimal equipment, making it a practical first step in many DIY scenarios. Note that soap tests may miss leaks inside walls or in sealed tubes, so plan a backup method for hidden areas.

Pressure testing with inert gas: a more robust option

Pressure testing with inert gas involves introducing a controlled amount of nitrogen (or clean dry air) into the system and monitoring pressure stability over a specified hold time. The test requires a regulator, a compatible connection on the service ports, and a gauge to watch pressure changes. Maintain test pressures per unit type (generally well below the maximum rated pressure) and watch for any drop that persists beyond the hold period. This method is valuable for identifying leaks in hidden sections and is widely used by technicians when working on closed-loop systems.

UV dye testing and dye injection

UV dye testing introduces a trace dye into the refrigerant circuit, followed by circulation and inspection under a UV light. Suspect areas fluoresce, revealing leak paths that others methods may miss. Dye testing is especially effective for slow, intermittent leaks or those behind panels. After injecting the dye, run the system for a short period, then inspect all joints, valves, and condensate lines. Ensure dye compatibility with your refrigerant and oil, and always follow manufacturer guidelines for dye concentration and service life.

Interpreting results and planning repairs

Once a leak is located, document its location, severity, and probable cause. Consider whether the leak is a pinhole, loose fitting, damaged O-ring, or a wear-prone connection. Plan repairs that address the root cause, not just the symptom, and verify repairs with a follow-up test. If refrigerant loss is significant, you may need a licensed technician to handle recovery and recharge in compliance with environmental regulations. Leak Diagnosis emphasizes that proper documentation and a re-test confirm system integrity before recharging.

Preparation for post-test steps and documentation

After testing, remove test equipment, vent any inert gas safely if required, and restore power to the AC system. Record test pressures, observed leaks, repair actions, and follow-up test results. Update maintenance records so future service calls start from an accurate baseline. This habit helps prevent repeat leaks and supports long-term efficiency and reliability.

toolsMaterials

items

Tools & Materials

Personal protective equipment (PPE)(Safety glasses or goggles, chemical-resistant gloves, long sleeves)
Soap solution and spray bottle(Commercial leak-detection solution or dish soap mixed with water)
Inert gas source (nitrogen) or clean dry air(Regulated supply with appropriate connection adapters)
Regulator and pressure gauge(Used to set and monitor test pressure)
AC manifold gauge set or equivalent(For monitoring system pressure during tests)
Electronic leak detector(Optional but increases accuracy, especially in hard-to-see areas)
UV dye kit and UV flashlight(For dye tracing tests; ensure dye compatibility with refrigerant)
UV protective cover or shield(Helps view fluorescing leaks in bright light)
Rags, towels, and spill containment(Clean up any spills promptly to avoid slips)
Leak-detection diary or app(Record locations, pressures, and actions)
Vacuum pump and micron gauge (optional)(Use if you plan to evacuate and re-test after repairs)
Service tools (wrench set, screwdrivers)(For tightening fittings and replacing seals)

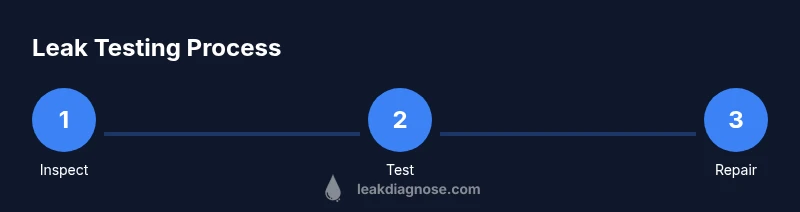

Steps

Estimated time: 1.5-3 hours

1
Prepare and safety check
Power down the outdoor unit and lock out the disconnect. Put on PPE and ensure the workspace is well-ventilated. Gather all required tools and verify your test plan before touching the system.
Tip: Double-check that you won’t vent refrigerant accidentally; have a recovery plan ready.
2
Isolate the system and identify test ports
Close or isolate the service ports you’ll be testing and ensure you have clear access to potential leak points. Label ports if you’re testing multiple sections. Confirm that the circuit will hold test pressure without triggering safety devices.
Tip: If you’re uncertain where a leak could be, start with easily accessible joints first.
3
Choose your test method
Decide between a soap-bubble test for visible joints, a pressure test with inert gas for hidden paths, or dye testing for difficult areas. Each method has strengths; combining methods yields the most reliable results.
Tip: Start with the least invasive method to minimize risk.
4
Set up inert-gas pressure test
Connect regulator and gauge to the system, then introduce a low, controlled amount of nitrogen or dry air. Monitor the pressure, ensuring it stays within safe limits for the unit. Hold for a defined period per your system’s rating.
Tip: Use a slow, controlled fill to avoid sudden pressure spikes.
5
Perform pressure hold and inspection
Hold the chosen pressure for the recommended duration. Inspect joints for signs of pressure loss or movement. If a drop occurs, re-check connections and/or proceed to a dye or soap test for confirmation.
Tip: Record any pressure changes with time stamps for accuracy.
6
Soap test or detector sweep
Apply soap solution to suspected joints or run a portable electronic detector over likely leak paths. Watch for bubbles or detector indicators that confirm leakage. Tighten or replace faulty components as needed.
Tip: Pay attention to concealed areas behind panels or within ducts.
7
Dye testing (optional)
If needed, inject dye into the refrigerant circuit and circulate briefly. Inspect under UV light for fluorescence to locate slow leaks that aren’t obvious with other methods. Ensure dye is compatible with your refrigerant and oil.
Tip: Avoid over-dyeing; follow product guidelines for dye concentration.
8
Document results and plan repairs
Record leak locations, severity, and the actions taken. Develop a repair plan and re-test after fixes. Ensure refrigerant handling complies with local regulations and complete any required documentation.
Tip: Keep a maintenance log to aid future servicing.

Pro Tip: Plan tests around low outdoor temperatures to avoid condensation affecting readings.

Warning: Do not exceed the system’s rated test pressure; over-pressurizing can cause fittings or lines to rupture.

Note: If you’re unsure about refrigerant handling, consult a licensed tech for recovery and recharge.

Pro Tip: Label all test ports and keep a written log of results for future reference.

Questions & Answers

What is considered a pass/fail outcome for a leak test?

A pass means no detectable leaks at the tested joints or paths under the specified pressure and time. A fail indicates a measurable pressure drop or visible leakage that requires repair before charging the refrigerant. Always verify with a re-test after repairs.

Can I leak test without evacuating refrigerant from the system?

In many residential scenarios, you can perform leak testing on a decommissioned or partially discharged system. If the system contains refrigerant, follow local regulations for handling and recovery to avoid accidental releases. When in doubt, consult a licensed technician.

Is nitrogen safe for leak testing?

Nitrogen is inert and commonly used for leak testing because it won’t react with refrigerants. Use a regulator and keep the pressure low to avoid system damage. Always follow equipment manufacturer guidelines.

How often should I leak test my AC system?

Test during initial installation, after major repairs, or if you notice reduced cooling efficiency or unusual sounds. For seasonal maintenance, a visual and trace-dye inspection can catch leaks early.

What areas are common leak points in AC systems?

Common leak points include connections at service ports, O-rings, compressor fittings, condenser coil joints, and refrigerant lines near electrical components. Slow leaks can hide behind panels or inside ductwork.

Do I need professional certification to leak test refrigerant systems?

Handling refrigerants and performing certain tests may require licensed certification depending on local laws. If you’re not certified, use non-refrigerant testing methods or hire a qualified technician for any step that involves refrigerant.
