Vacuum Leak Car Repair: DIY Diagnosis & Fix Guide
Learn how to locate, diagnose, and repair vacuum leaks in your car with safe, step-by-step instructions, practical tools, and troubleshooting tips from Leak Diagnosis.
You will diagnose and repair a vacuum leak in your car using safe, DIY steps, proper tools, and a check-list to avoid wasted time. This guide covers common vacuum lines, signs of leaks, testing methods (smoke test, spray test), and when to seek professional help. Follow the steps to locate, isolate, and repair or replace faulty hoses and fittings.
What is a vacuum leak and why it matters
A vacuum leak occurs when the sealed air pathway in a car's intake and vacuum system is compromised, allowing unregulated air to enter the engine. This can throw off the air-fuel mixture, causing rough idle, stalling, and reduced fuel economy. According to Leak Diagnosis, vacuum leaks are a common cause of drivability issues and can be easier to fix than owners expect when approached safely. Understanding how the vacuum system works—covering the intake manifold, PCV system, brake booster, and EVAP lines—helps you pinpoint where air is entering unintentionally and why a leak matters for performance and emissions.
Signs of a vacuum leak to watch for
Early detection saves time and prevents further damage. Common symptoms include a high or fluctuating idle, engine misfires, rough running at cold starts, a persistent check engine light, hissing noises under the hood, and increased fuel consumption. In some vehicles, you may notice backfiring or a lean exhaust smell. If you’ve recently replaced hoses or components and the problem begins again, a leak is often the culprit. Using an OBD-II scanner can reveal related codes like P0171 or P0174, which indicate a lean condition that could stem from a vacuum leak.
Typical sources of vacuum leaks in passenger cars
Vacuum leaks can originate from several points in the system. Common culprits include cracked or brittle hoses (especially PCV and breather hoses), loose clamps, a faulty PCV valve, deteriorated brake booster hoses, intake manifold gaskets, throttle body gaskets, and EVAP system components. The hose connections near the throttle body and intake plenum are frequent failure points due to heat cycling and engine movement. A thorough visual inspection combined with gentle hand feel for cracks and gaps often reveals the leak source.
Safe testing methods you can perform at home
Testing a vacuum system safely requires patience and the right methods. Start with a visual inspection of hoses for cracks, swelling, or disconnections, and gently wiggle each line to check for looseness. A no-cost test involves spraying soapy water around suspected joints while the engine is idling; bubbling indicates a leak. For more precision, a propane or carburetor spray test can help locate the exact location: a stall or idle change when sprayed near a joint signals the leak site. A smoke test, if available, is the most effective non-destructive method for locating hard-to-see leaks.
Note: Always wear eye protection and work in a well-ventilated area. Keep flammables away from hot ignition sources when performing spray tests.
How to interpret test results and what to do next
If you observe a change in idle speed when spraying a suspect area, you’ve likely found the leak source. Mark the part and inspect or replace it. After replacing hoses or repairing gaskets, recheck the harnesses and clamps for tightness. If a leak remains after basic hose replacement, the issue may involve a more complex component (like manifold gaskets or a faulty EVAP valve) and may require professional diagnostics to avoid further damage.
Repair strategies: hoses, clamps, and gaskets
Repairing a vacuum leak typically involves replacing cracked hoses, upgrading brittle clamps, or resealing gaskets with manufacturer-approved materials. When replacing hoses, choose sizes that match the original—too tight can kink lines, too loose can create new leaks. After replacement, apply new clamps and ensure each connection is snug without over-tightening. For gasket issues, you may need to remove intake components to access the gasket and replace with a proper sealant or OEM gasket as recommended by your vehicle’s service manual.
Post-repair checks and performance verification
Once you’ve completed the repairs, start the engine and allow it to reach operating temperature. Listen for any residual hissing and note if idle smooths out. Use an OBD-II scanner to clear any stored codes, then perform a short road test to ensure throttle response is normal and fuel economy improves. Check for any new vacuum-related codes after driving. If problems persist, re-evaluate components or consider a professional inspection to prevent future leaks.
Maintenance tips to prevent future vacuum leaks
Regularly inspect vacuum hoses and hoses on heat-sensitive routes (near the exhaust and intake) for signs of aging, cracking, or deformation. Replace hoses proactively rather than waiting for a leak to develop. Keep clamps tight but not over-tightened, and replace brittle clamps that show rust or thread wear. Periodically check the PCV system for proper operation, as a malfunctioning PCV valve can cause backpressure and accelerate hose deterioration.
Tools & Materials
- OBD-II code reader/scan tool(Check for vacuum-related codes like P0171, P0174; not all leaks trigger codes.)
- Propane torch or carburetor spray(Used for the spray test method; keep away from hot engine surfaces.)
- Soapy water spray bottle(Bubble test helps identify leaks at hose joints.)
- Replacement vacuum hoses (assorted sizes)(Pre-cut or flexible hoses; measure outer diameter before buying.)
- Vacuum hose clamps(Use spring or screw clamps; ensure tight, leak-free connections.)
- Safety glasses(Eye protection when performing tests near moving parts.)
- Rags and cleaning solvent(Clean up spills; avoid solvents near electrical connections.)
- Torque wrench (optional)(Useful for manifold bolts if resealing gaskets per manual.)
- Gasket sealant or gasket set (OEM-specific)(Only if manufacturer specifies; follow manual guidance.)

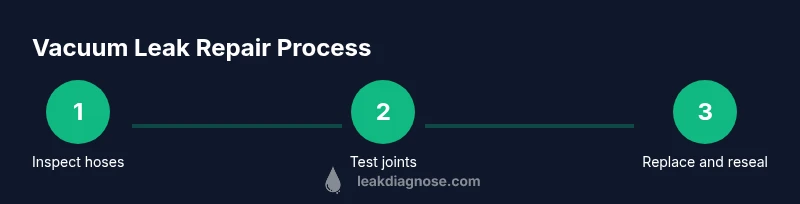

Steps
Estimated time: 90-180 minutes
- 1
Prepare the vehicle safely
Park on a level surface and apply the parking brake. With the engine cool, open the hood and lay out your tools. If you’ll test with sprays or a smoke machine, ensure the area is ventilated and keep flames or sparks away.
Tip: Wear eye protection and gloves; keep flammables away from the engine bay. - 2
Visual inspection of hoses and connections
Check all visible vacuum hoses for cracks, swelling, or disconnections. Gently wiggle each line at the fittings to detect looseness. Note any parts that look aged or brittle for replacement.
Tip: Label hoses before removal to simplify reassembly. - 3
Inspect PCV system and related components
Pay close attention to PCV hoses, valve, and the breather tube. A stuck PCV valve can create a lean condition and accelerate hose wear. Replace a worn PCV valve if found.
Tip: If you can't access the PCV valve easily, take photos to guide reassembly. - 4
Perform a spray test to locate the leak
With the engine running, spray around suspected joints using propane/carb spray or soapy water to identify a change in idle. A noticeable stumble or rise in RPM indicates the leak site.
Tip: Do not spray near hot components; keep your face away from the spray zone. - 5
Optionally conduct a smoke test
If you have a smoke machine, introduce smoke into the vacuum system and watch for escaping smoke at leak points. This is the most reliable way to locate hidden leaks.
Tip: Smoke tests require proper equipment and ventilation; follow device instructions. - 6
Isolate the suspected leak and prepare for repair
If a single hose or joint is suspect, remove it and inspect for wear. Confirm the exact part before replacing to avoid unnecessary work.
Tip: Take a photo of the original setup to ensure correct replacements. - 7
Repair or replace the faulty component
Install new hoses or replace gaskets as needed. Fit new clamps and ensure a tight seal without over-tightening. Reconnect all lines in the correct orientation.
Tip: Only use OEM-compatible parts; mismatched hoses can create new leaks. - 8
Reassemble and perform a final verification
Reinstall any components removed during inspection, start the engine, and let it reach operating temperature. Re-test with the spray method or smoke test to confirm no leaks remain. Monitor idle and shifting with a test drive.
Tip: If codes persist, clear them with the scan tool and re-test after a short drive.
Questions & Answers
Can a vacuum leak cause a car to stall at idle?
Yes. Vacuum leaks can cause an unregulated air intake, leading to idle instability and potentially stalling the engine. Addressing the leak and ensuring proper air-fuel mixture helps restore stable idle.
Yes, vacuum leaks can cause idle instability and stalling. Fixing the leak helps restore a smooth idle.
What are the most common sources of vacuum leaks in older cars?
Older cars often develop cracks in vacuum hoses, failing PCV valves, and brittle clamps. Vacuum lines near the intake manifold and brake booster are frequent weak points.
Common sources include cracked hoses, bad PCV valves, and worn clamps near the intake and brake booster.
Is it safe to use spray tests around the engine?
Spray tests are generally safe if you use non-flammable fluids and keep away from hot surfaces. Follow all safety guidelines and avoid sparking sources when using flammable test fluids.
Spray tests can be safe if you follow safety guidelines and avoid sparks or flames.
When should I seek professional help for a vacuum leak?
If the leak is in a hard-to-reach area, involves the manifold gasket, or if the Check Engine light remains after basic hose replacement, professional diagnostics are recommended.
If it’s a hard-to-reach leak or the light stays on after basic fixes, get a pro.
Will replacing a hose fix all vacuum leak symptoms?
Not always. Some leaks involve seals, gaskets, or EVAP components. After hose replacement, re-check for other potential leak sources.
Hose replacement fixes many leaks, but other components may also cause symptoms; verify with follow-up checks.
Watch Video
Main Points
- Identify your leak sources through careful inspection.
- Use safe testing methods to confirm the exact location.
- Replace worn hoses and clamps; test again to verify.
