Leak in Transfer Case: Diagnosis and Fix Guide

Understanding the leak in transfer case

A leak in transfer case refers to fluid escaping from the component that splits power to the front and rear axles in four-wheel-drive systems. The transfer case typically contains gear oil or ATF depending on the vehicle and model, and maintaining proper fluid levels is essential for smooth operation and gear lubrication. According to Leak Diagnosis, drivetrain leaks like this often start small and worsen with time, so early detection is crucial. In most trucks and SUVs, the common sources are seals, gaskets, and the hydraulic vent; cracks in the housing or a loose drain plug can also contribute. A small drip can become a major problem if contaminants enter the case or if the fluid level drops too low, causing increased wear, overheating, and potential failure of bearings or gears. The goal of this guide is to help homeowners and DIY enthusiasts identify probable causes and take safe, practical steps to fix or escalate the repair when needed.

Why this issue is urgent for your drivetrain

The moment you notice a leak in transfer case, urgency matters. Loss of lubrication can cause rapid wear of gears, bearings, and synchronizers, leading to overheating and possible transmission-like damage. Left unchecked, contaminants like dirt and metal shavings may enter the oil, amplifying wear and increasing repair costs. Based on Leak Diagnosis analysis, addressing leaks early minimizes damage and helps preserve your vehicle’s resale value. This section explains why acting now protects your drivetrain investment and reduces the risk of a breakdown on the road.

Quick checks you can perform safely (no tools yet)

Before pulling any parts, perform basic safety-oriented checks to confirm the problem and avoid unnecessary disassembly:

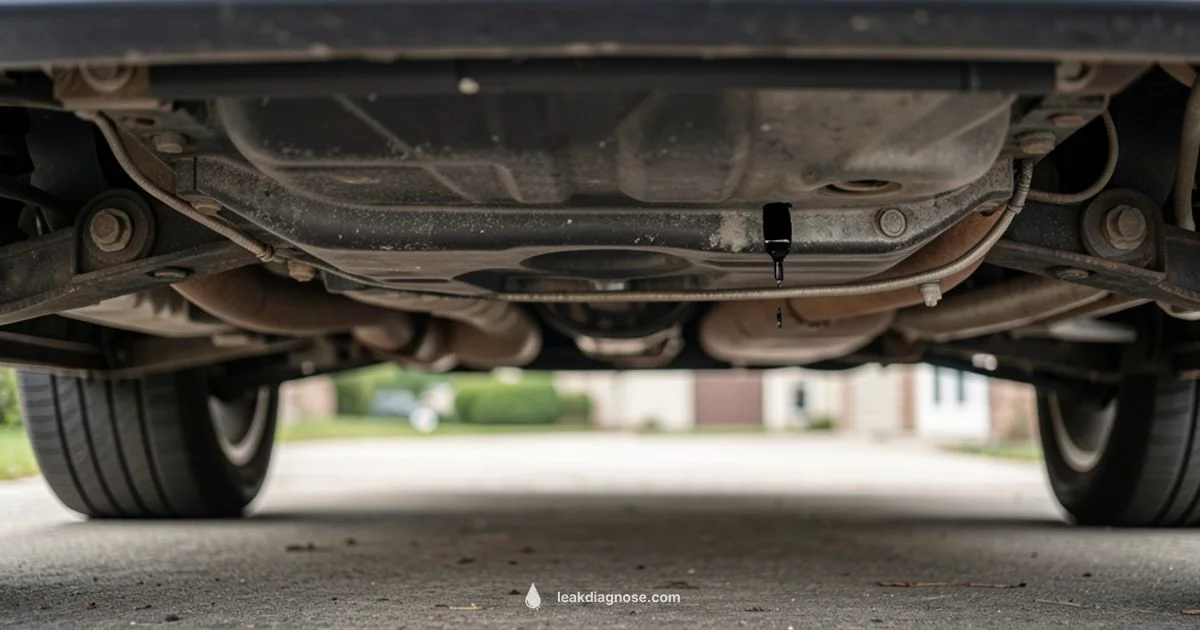

• Look for fresh fluid under the vehicle near the transfer case and note the color (brown/amber) and odor of the oil.
• Check for a visibly loose drain plug or damaged gasket around the transfer case plug area.
• Inspect the vent tube for kinks, blockages, or signs of oil backing up that could indicate a pressure issue.
• If accessible, inspect seals around the output shaft and the front/rear seal areas for seepage or staining. Record all observations with photos for reference.
• Ensure the vehicle is on level ground, the parking brake is engaged, and the transmission is in park (or gear selector is in the appropriate position for your model) before you handle any components.

Diagnostic clues pointing to the most common causes

Diagnosing a leak involves matching symptoms to likely culprits. Common sources include:

• Pinion seal failure – high likelihood; seepage at the front edge of the transfer case where the pinion shaft exits.
• Transfer case gasket failure – medium likelihood; seepage along the case seam or near mounting plates.
• Worn output shaft seal – medium likelihood; fluid leakage near the output shaft where it connects to drive components.
• Vent tube blockage or collapse – low likelihood but possible; pressure buildup can push fluid out through weak points.
• Cracked housing or damaged plugs – low likelihood but possible in severe impacts or over-torqued bolts.

Think of these as a workflow: start with the easiest visual clues (drain plug and vent) and progress toward internal seals if external signs are absent. This approach minimizes needless disassembly while prioritizing safety and accuracy.

Diagnostic flow: symptom → diagnosis → solutions workflow

This section outlines a practical, at-a-glance flow to navigate leak symptoms to a repair plan:

• Symptom: Fluid on the ground after a drive; inconsistent four-wheel-drive engagement; low fluid indicator if equipped.
• Diagnosis: External sources first (drain plug, seals, vent). If no external sign, suspect internal seals or gasket failure.
• Solutions: Tighten/replace drain plug and gasket, replace pinion or output shaft seals, reseal the transfer case or replace the gasket, and refill the correct fluid type to the recommended level. After any repair, perform a controlled test drive and recheck for leaks.

STEP-BY-STEP: Fix for the most common leak

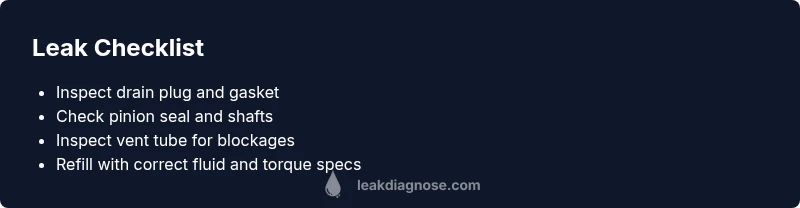

1. Inspect the most likely external sources: verify the drain plug is tight, the gasket is intact, and the vent hose is free of blockages. Tip: take a photo for reference before touching components.
2. If the drain plug or gasket shows wear, replace them with the correct torque specification. Tip: use a fresh gasket and thread sealant only if recommended by the service manual.
3. If external seals are intact but seepage remains, prepare for seal replacement: safely raise the vehicle, support with jack stands, and drain the transfer case fluid.
4. Replace the pinion seal or the output shaft seal as indicated by your inspection. Tip: clean the area thoroughly to clearly see any seepage during reassembly.
5. Refill the transfer case with the manufacturer-recommended fluid type and quantity. Tip: do not overfill; leave space for thermal expansion.
6. Reinstall any components, lower the vehicle, and perform a slow road test while watching the area for fresh leaks. Tip: check after a short drive and again after a longer test run.

Prevention and maintenance tips (to reduce future leaks)

Proactively maintaining the transfer case can prevent leaks and extend drivetrain life:

• Regularly check fluid level and condition; replace if contaminated or degraded.
• Inspect seals and gaskets during routine maintenance or if you notice seepage around the transfer case.
• Ensure vent tubes are clear and routed correctly to prevent pressure buildup.
• Use the proper fluid type and adhere to capacity specs; avoid overfilling or underfilling.
• Address driveline impacts promptly; use a skid plate or protective guards if needed to reduce damage from off-road use.
