How to Repair a Transmission Leak: A DIY Guide
Learn how to diagnose and repair a transmission leak safely with practical, home-friendly steps. This guide covers sources, tools, safety, and maintenance to protect your vehicle and the environment. Leak Diagnosis delivers clear, actionable guidance for DIY enthusiasts.
This guide helps homeowners locate and repair a transmission leak, covering safety, inspection steps, common leak sources, and practical fixes. You’ll learn when to repair vs. replace, which tools to gather, and how to test for leaks after completing a repair. Follow safe procedures to avoid drivability issues and environmental contamination.
Understanding transmission leaks
Transmission leaks are a warning sign that your vehicle’s transmission system is losing fluid due to seal or gasket wear, damaged lines, or improper pan gasket seating. The leak not only reduces fluid pressure and lubrication but can cause overheating and accelerated wear if ignored. According to Leak Diagnosis, early detection saves cost and downtime by allowing a simple gasket reseal or line tightening before more extensive repairs are needed. In practice, a careful inspection that combines a visual assessment with a catch-and-detect approach is the most reliable way to pinpoint the source. This section explains how to interpret wet spots, fresh fluid sheen, and residue patterns to differentiate between minor seepage and a true leak that requires service. Because transmission fluid is often red or brown, looking for color and consistency can help identify leaks more quickly. Consistent environmental awareness, including proper disposal and containment of used fluid, protects you and your property.
note
Common sources of transmission leaks
Leaks occur at several points in the transmission system, and locating the exact source can be challenging without a systematic approach. The most frequent culprits are the pan gasket and pan bolts, cooler line fittings, and the input/output shaft seals. Another common source is the transmission fluid return line or a faulty drain plug. Visual cues such as fresh fluid on the ground, streaks along the underside of the vehicle, or damp patches around the transmission pan are strong indicators. In this section we break down each potential source with how to identify it and the typical signs you should look for during a DIY inspection. Note that leak patterns can change with driving conditions and vehicle age, so repeated checks after a short test drive are recommended. Leak Diagnosis emphasizes cautious assessment and proper safety practices to avoid spills and exposure.
Safety first: precautions and environmental rules
Before you begin, set the vehicle on level ground, engage the parking brake, and support it with quality jack stands or ramps. Wear nitrile gloves and safety glasses to protect your skin and eyes from hot fluids and solvents. Transmission fluid is typically hazardous waste, so plan for proper disposal at a certified facility. Keep a drip pan in place to catch spills and prevent staining of driveways or garage floors. Work in a well-ventilated area to avoid fumes, and never work under a car supported only by a jack. This section also covers the importance of letting the transmission cool down before opening any components and how to prevent contamination of the fluid with dirt or water during repairs.
Diagnosing the leak without a full shop
A thorough DIY inspection can often identify a leak without expensive equipment. Start by cleaning the area around the transmission pan and lines, then run the engine briefly in Park or Neutral while watching the undercarriage. Inspect the pan gasket, drain plug, cooler lines, and any hose clamps for signs of seepage or cracks. If you see dampness near the pan, resealing the pan is a common first fix. If the leak appears along the cooler lines or fittings, tighten or replace clamps and seals as needed. This section provides a practical, home-friendly approach to isolating the leak while minimizing risk and mess.
Preparing your repair: tools, materials, and workspace
Gather your tools and materials before you start to avoid mid-project trips to the parts store. Essential items include a drain pan, replacement pan gasket, appropriate fluid, a torque wrench, and basic hand tools. Clear a workspace and ensure good lighting; keep rags and degreaser handy for quick cleanups. If you identify a damaged cooler line or seal, you may need replacement hoses or clamps. In addition to a clean area, consider using a white-light work lamp to better observe the leak source, and plan for a second person to help with undercarriage tasks. This section emphasizes preparation as the foundation of a successful, safe repair.
Step-by-step approach to pan gasket leaks
Pan gasket leaks are among the most common transmission leaks and are often the simplest to fix. Start by safely lifting the vehicle and removing the transmission pan bolts in a star pattern. Carefully lower the pan and remove the old gasket material, taking care not to damage the gasket surface. Clean the pan and flange surfaces thoroughly before applying a new gasket and replacing the pan, torquing bolts to the manufacturer’s specification. Refill transmission fluid to the correct level, then perform a test drive to verify the fix. This section guides you through a methodical approach to a pan gasket leak with emphasis on cleanliness and correct torque.
Step-by-step approach to cooler line or fittings leaks
If the leak originates from cooler lines or fittings, you’ll focus on the connections and lines rather than the pan. Inspect for cracks, splits, or loose clamps, and replace any damaged segments with OEM-recommended parts. Tighten fittings to the proper torque, avoiding overtightening that could damage threads. After replacing lines or clamps, flush or top off the transmission fluid to the correct specification and check for residual leaks after a short drive. This section provides targeted guidance for leaks along the cooler circuit, which are common in aging vehicles.
Refilling and testing after a repair
After reassembly, slowly refill transmission fluid through the dipstick tube or dedicated fill port, following the vehicle’s manual. Check the fluid level once the engine has warmed up and the transmission is in Park with the engine running. Look for the absence of fresh leaks at the repair site and around the pan and lines. A careful test drive should be performed to ensure smooth operation and to verify that pressure and lubrication have returned to normal. This section covers the crucial post-repair steps to confirm success and prevent recurrence.
When to seek professional help and maintenance tips to prevent future leaks
Some leaks are a sign of more serious problems, such as worn seals, internal wear, or cracked housings. If leaks persist after a gasket replacement or if you notice unusual shifting, slipping, or warning lights, consult a professional technician. Regular maintenance—checking fluid levels, replacing worn lines, and using the correct transmission fluid—helps prevent leaks. This closing section emphasizes practical maintenance routines to extend transmission life and reduce the risk of future leaks, and reinforces the value of professional support when necessary.
Tools & Materials
- Vehicle safety gear (gloves and safety glasses)(Nitrile gloves; ANSI Z87.1 safety glasses)
- Jack stands or ramps(Use on level ground; never rely on a jack alone)
- Drain pan(Large enough for the expected fluid volume)
- Torque wrench(To tighten pan bolts to spec)
- Socket wrench set (metric and SAE)(Includes extension and adapter bits)
- Screwdrivers (slotted and Phillips)(For clamps and small parts)
- Replacement transmission pan gasket(New gasket per vehicle spec)
- Replacement cooler line clamps or hose (if needed)(Only if lines show wear or damage)
- Gasket scraper or plastic scraper(Clean gasket surfaces without gouging)
- Degreaser and rags(For cleaning leaks and fluids)
- New transmission fluid (per manual)(Check exact grade and capacity)
- Funnel(Mess-free refilling and level checks)

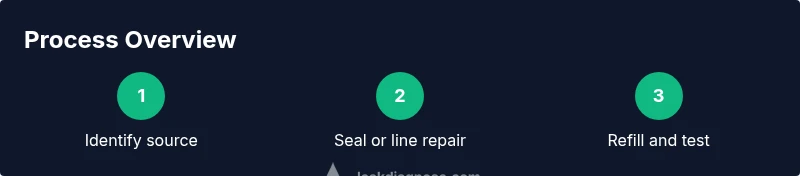

Steps
Estimated time: 60-120 minutes
- 1
Prepare vehicle and safety setup
Park on level ground, engage the parking brake, and allow the transmission to cool. Gather tools and materials before you touch the vehicle.
Tip: Never work under a hot, pressurized system. - 2
Lift and support the vehicle
Use a jack and jack stands or ramps on solid, level ground. Set wheel chocks and ensure the vehicle is stable before going under it.
Tip: Always support with stands; never rely on a jack alone. - 3
Locate leak source
Clean the area around the transmission pan and lines, then look for wet spots, fresh fluid, or staining patterns near the pan gasket and cooler lines.
Tip: Keep a drain pan in place to catch drips immediately. - 4
Drain transmission fluid
If your model has a drain plug, remove it slowly and allow the fluid to drain fully into the pan. Otherwise plan to drain by removing the pan bolts later.
Tip: Be prepared for hot fluid; wear gloves. - 5
Remove transmission pan
Loosen and remove the bolts around the pan in a criss-cross pattern. Carefully lower the pan to avoid spilling fluid and inspect the gasket surface.
Tip: Keep bolts organized to match their holes. - 6
Inspect and replace gasket/seals
Check the pan gasket and nearby seals for cracks or wear. Clean mating surfaces before installing a new gasket; replace worn seals as needed.
Tip: Do not reuse damaged gaskets; prepare fresh sealant if specified. - 7
Reinstall pan and refill fluid
Place the pan with the new gasket, tighten bolts to spec in a criss-cross pattern, and refill the transmission with the correct fluid grade.
Tip: Add fluid gradually and recheck level after warm-up. - 8
Test for leaks
Lower the car, start the engine, and run through gears to circulate fluid. Inspect the pan and lines for fresh leaks and recheck the level once settled.
Tip: Take a short drive and recheck after cooling.
Questions & Answers
What causes a transmission leak?
Leaks often stem from worn seals, damaged gaskets, or loose fittings. Temperature and age contribute to deterioration.
Most leaks come from worn seals, gaskets, or loose fittings, especially as vehicles age.
Can I drive with a transmission leak?
Driving with a leak can lower fluid levels and cause overheating or internal damage. If the leak is significant, avoid driving until repaired.
A small leak is usually fixable, but a large leak can risk transmission failure.
How do I tell if the leak is from the pan or lines?
If fluid gathers around the pan area, the gasket or drain plug is a likely source. If fluid appears along cooler lines or fittings, those areas are suspect.
Look for damp spots around the pan and along the lines to identify the source.
Should I replace the transmission filter when repairing a leak?
If your model has a replaceable filter and it’s due for service, it’s reasonable to replace it during a leak repair; otherwise, focus on the gasket and lines.
If there’s a filter, consider changing it during service.
Is DIY repair safe for transmission leaks?
Basic fixes can be DIY-safe for minor leaks, but serious leaks or internal damage should be handled by a professional.
DIY is possible for small leaks; large leaks should be handled by a pro.
Do I need to flush the transmission after a leak?
A flush is not always required after a leak repair; the technician will determine if a flush is needed based on fluid condition.
A flush isn’t always needed after a simple leak fix.
How long does a leak repair typically take?
Most gasket or line repairs can take 1-2 hours, though more complex issues may require longer and parts ordering.
Most repairs finish in a few hours, depending on the issue.
What safety checks should I perform after repair?
Check for any signs of leaks after a test drive, verify fluid level, and inspect around the repair site for heat or smoke sensations.
After repair, inspect for leaks and ensure fluid level is correct.
Watch Video
Main Points
- Identify leak sources with a systematic visual check
- Replace pan gasket and seals with correct parts
- Torque bolts to exact spec to prevent future leaks
- Refill and test thoroughly to confirm repair
- Know when to seek professional help for complex leaks
